Components and components location

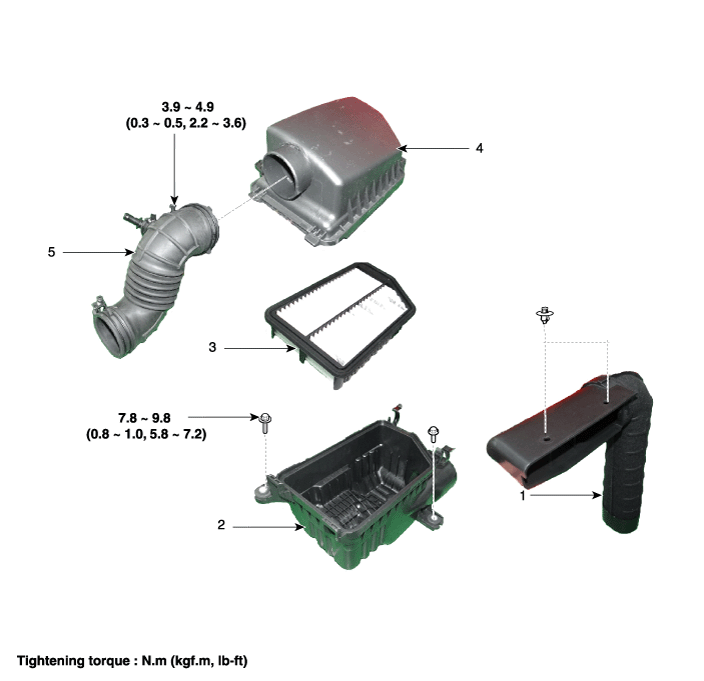

Components

1. Air duct
2. Air cleaner lower cover
3. Air cleaner element

4. Air cleaner upper cover
5. Air intake hose

Repair procedures

Removal and Installation

1.	Remove the engine cover. (Refer to And Transaxle Assembly - " Engine Cover")

2.	Disconnect the battery negative terminal.

Remove the air duct and air cleaner assembly.

Tightening torque :

Hose clamp bolt:

2.9 ~ 4.9 N.m (0.3 ~ 0.5 kgf.m, 2.1 ~ 3.6 lb-ft)

Air cleaner assembly bolts:

7.8 ~ 9.8 N.m (0.8 ~ 1.0 kgf.m, 5.8 ~ 7.2 Ib-ft)

(1)	Remove the air duct (A).

(2)	Disconnect the breather hose (A) and air intake hose (B), then remove the air cleaner assembly (C).

4.	Install in the reverse order of removal.

Air Cleaner Element Replacement

1.	Open the air cleaner cover by unhooking the clamps.

Replace the air cleaner element (A) with a new one.

If there are foreign substances inside the air cleaner assembly, wipe the inside of the air cleaner assembly and then replace the air cleaner element.

3.	Close the air cleaner cover by hooking the clamps.
