Anti-Theft Alarm System Settings
What are the Alarm Security Levels
You can select two levels of alarm security, all sensors and perimeter sensing.
All Sensors
All sensors is the standard setting.
In all sensors, all equipped sensors are on when you arm the alarm.
Note: Do not arm the alarm with all sensors if passengers, animals or other moving objects are inside your vehicle.
Perimeter Sensing
In perimeter sensing, the interior sensors are off when you arm the alarm.
All the other equipped sensors activate when you arm the alarm in this mode.
Setting the Alarm Security Level
What Is Ask on Exit
You can choose which level of security you require after you switch the ignition off.
Note: If you do not choose a setting, the system defaults to all sensors.
Switching Ask on Exit On and Off
Security – Troubleshooting

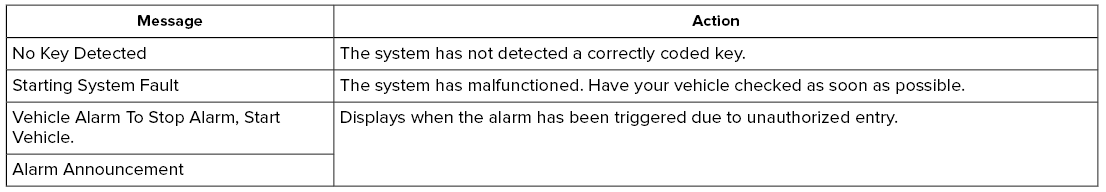

Security – Information Messages

Security – Frequently Asked Questions
What should I do if there is any potential alarm problem with my vehicle?
Take all remote controls to an authorized dealer if there is any potential alarm problem with your vehicle.
What should I do if the vehicle is unable to start with a correctly coded key?
Have your vehicle checked as soon as possible.
Passive Anti-Theft System. Anti-Theft Alarm System
