Hyundai Creta: Steering wheel / Components and components location

Hyundai Creta GS 2014-2019 Service Manual / Steering System / Steering wheel / Components and components location

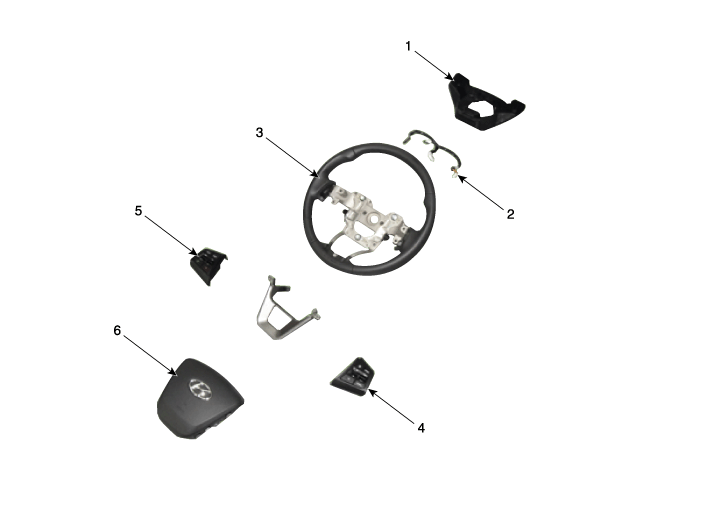

Components

1. Lower cover
2. wiring
3. steering wheel

4. Remote control RH
5. Remote control LH
6. Drive air bag

Repair procedures

Removal 1. Disconnect the battery negative cable from the battery and then wait for at least 30 seconds. 2. Turn the steering wheel so ...
