Description and operation

Description

Component location : Manual transaxle case

Operation principle : Back up lamp switch is pushed by the reverse lug sliding when select arm, and switches the back up lamp.

Function : Turn on the back up lamp when reversing.

Specifications

Specification

Item	Specification
Current voltage	13V
Working voltage	DC 10~15V
Operating force	3.0kg Max
Voltage drop	-0.4V
Working temperature	-30°C ~ 100°C [-30°F ~ 212°F]

Repair procedures

Inspection

1.	Remove the air cleaner assembly. (Refer to Engine Mechanical System - "Air Cleaner")

2.	Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery")

3.	Disconnect the back up lamp switch connector (A).

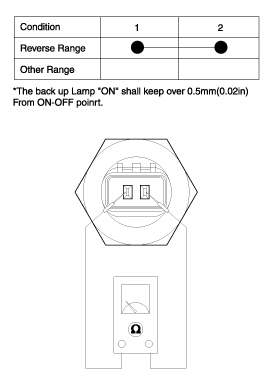

4.	Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.

Replacement

1.	Remove the air cleaner assembly. (Refer to Engine Mechanical System - "Air Cleaner")

2.	Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery")

3.	Remove the back up lamp switch (A).

Replace a new one and install the back up lamp switch.

Tightening torque:

39.2 ~ 58.8 N.m (4.0 ~ 6.0 kgf.m, 28.9 ~ 43.4 lb-ft)
