Lincoln Nautilus: Fuses / Body Control Module Fuse Box

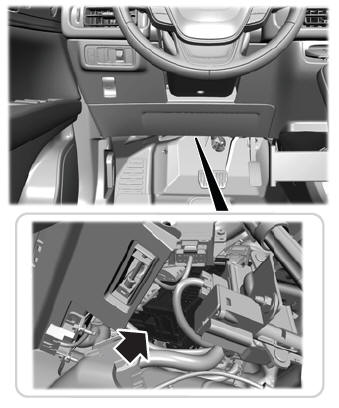

Locating the Body Control Module Fuse Box
Accessing the Body Control Module Fuse Box
To access the fuses in the body control module fuse box, contact an authorized dealer.

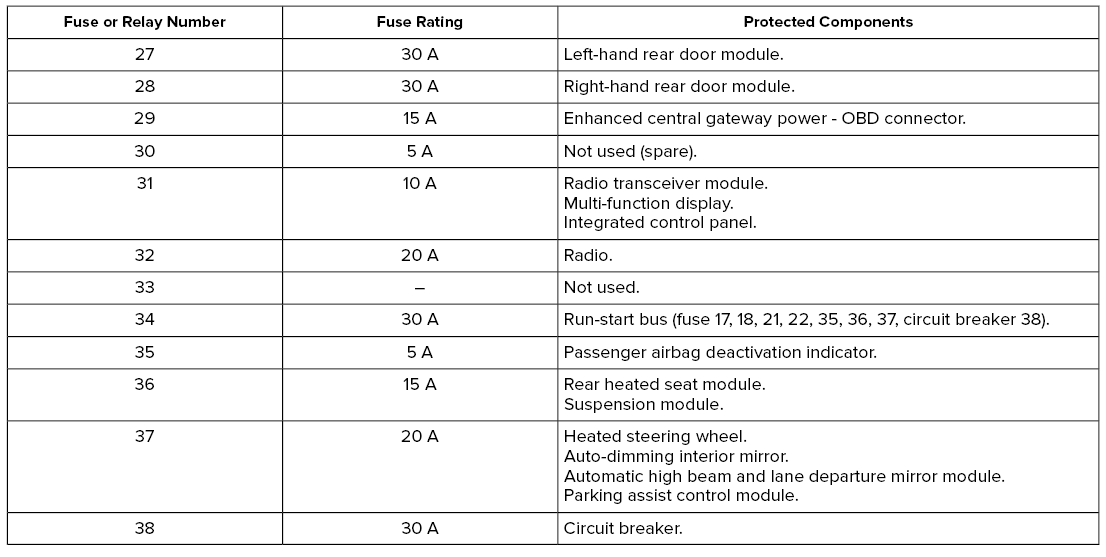

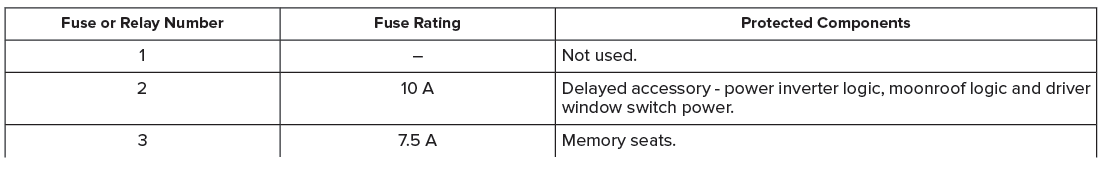

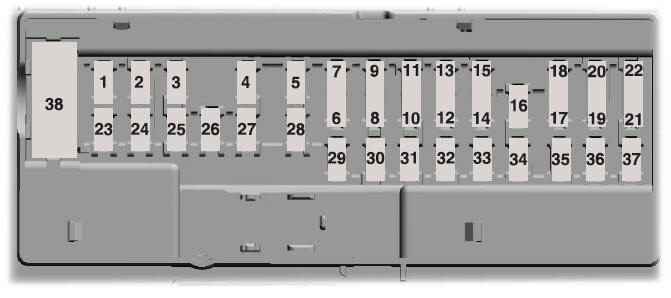

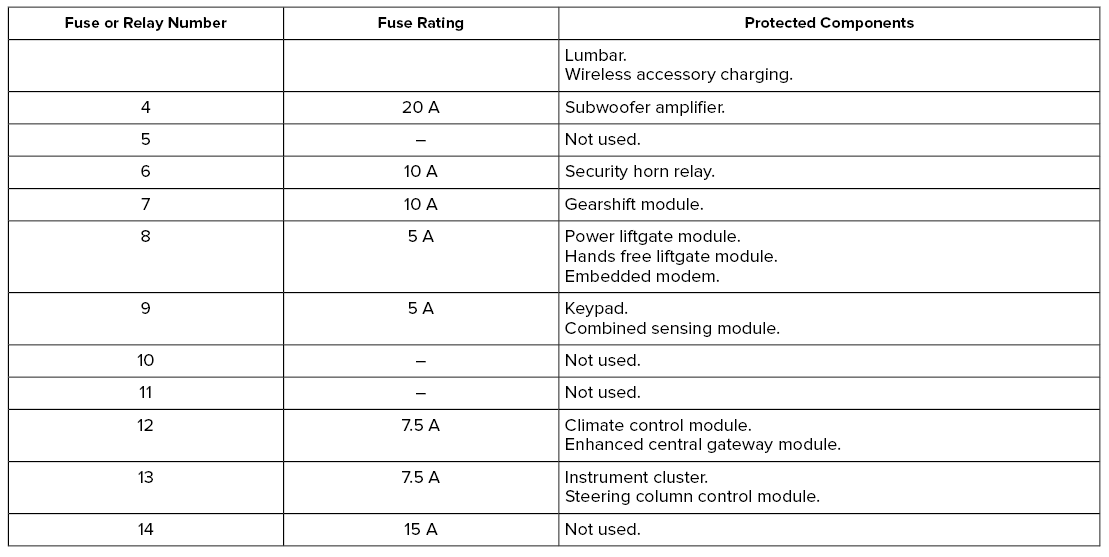

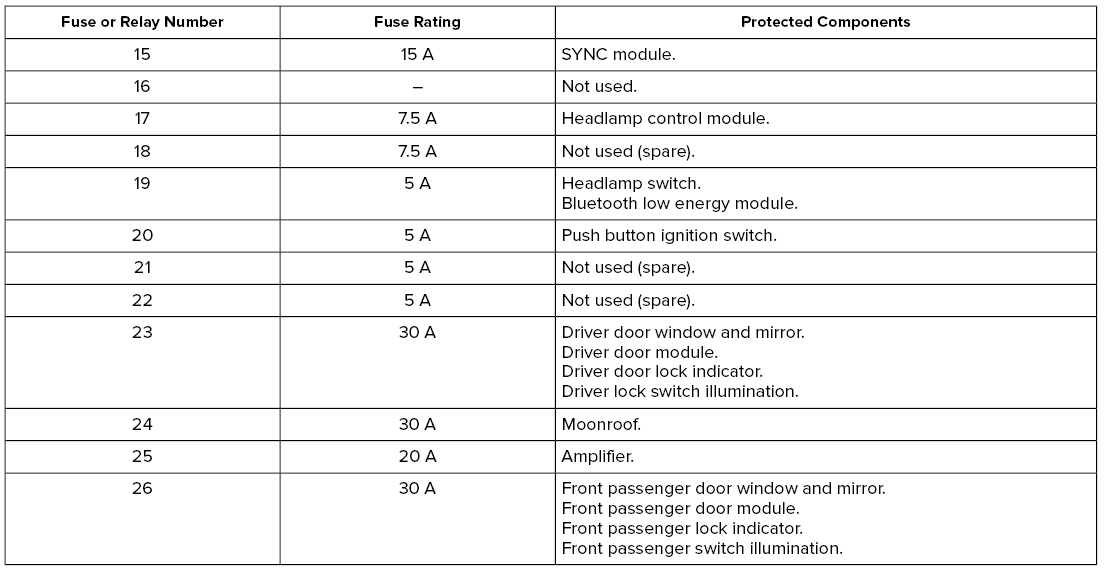

Identifying the Fuses in the Body Control Module Fuse Box
