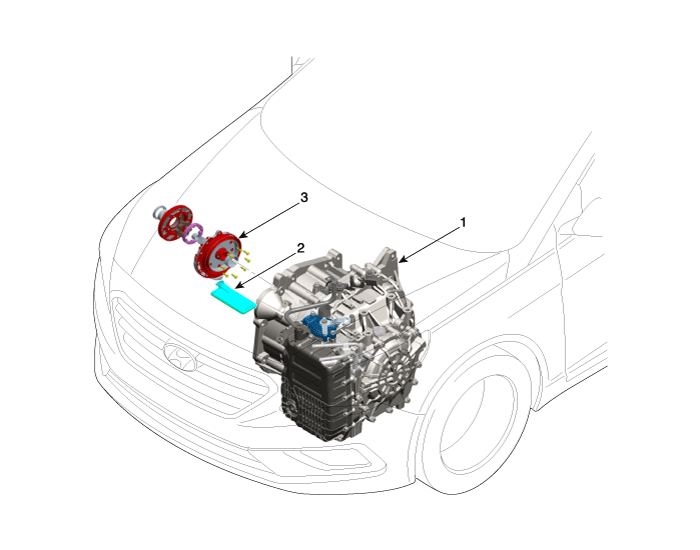

Components Location

1. Automatic transaxle
2. Oil filter
3. Mechanical oil pump

Description and operation

Description • The oil pump is powered by the engine. ATF passes through the oil filter and gets distributed along the oil channels. • ...

Oil Pump

Description and operation Description • The oil pump is built-in as a single unit with the 26 Brake chamber. • Rotation of the p ...
