Hyundai Creta: General Information / Components and components location
Hyundai Creta GS 2014-2019 Service Manual / Restraint / General Information / Components and components location
| Components Location |

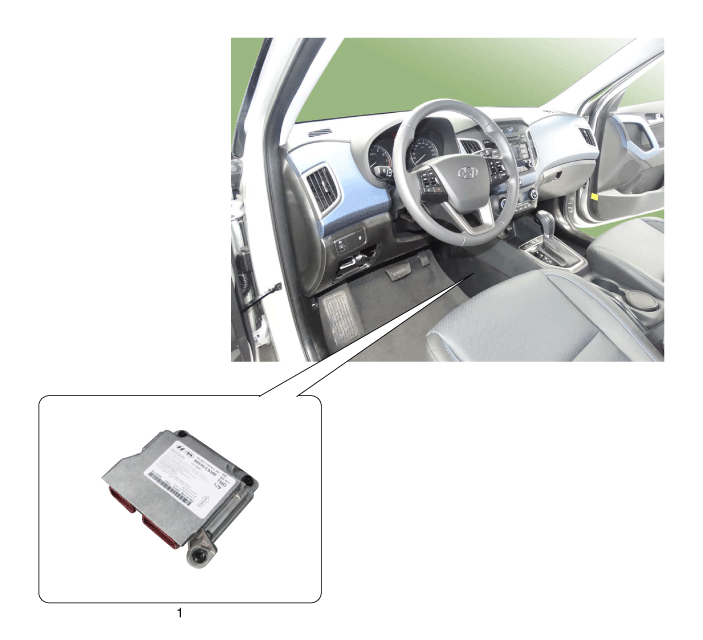

| Supplemental Restraint System Control Module (SRSCM) |
| 1. Supplemental Restraint
System Control Module (SRSCM) |

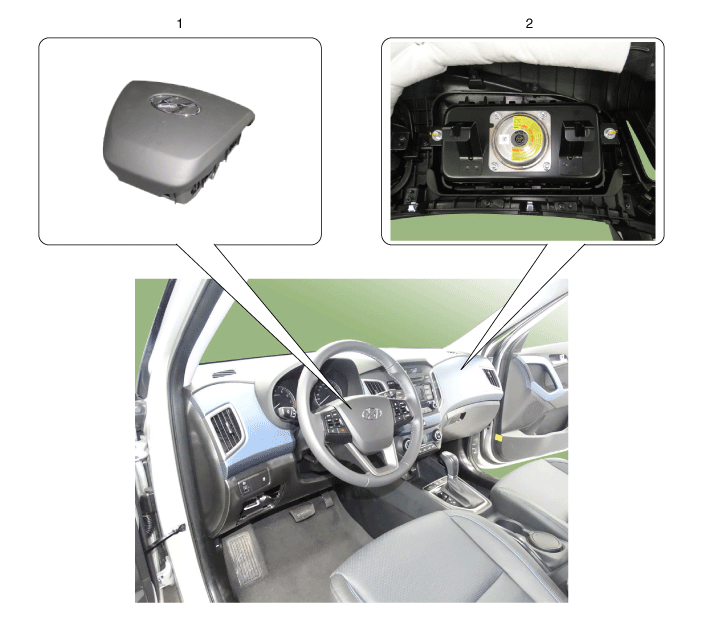

| Driver Airbag (DAB) / Passenger Airbag (PAB) |
| 1. Driver Airbag (DAB) |
2. Passenger Airbag (PAB) |

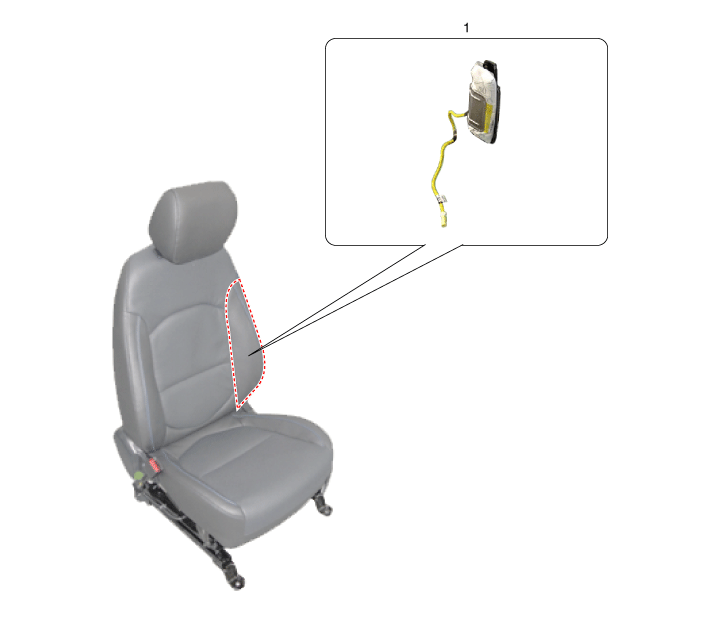

| Side Airbag (SAB) |
| 1. Side Airbag (SAB) |

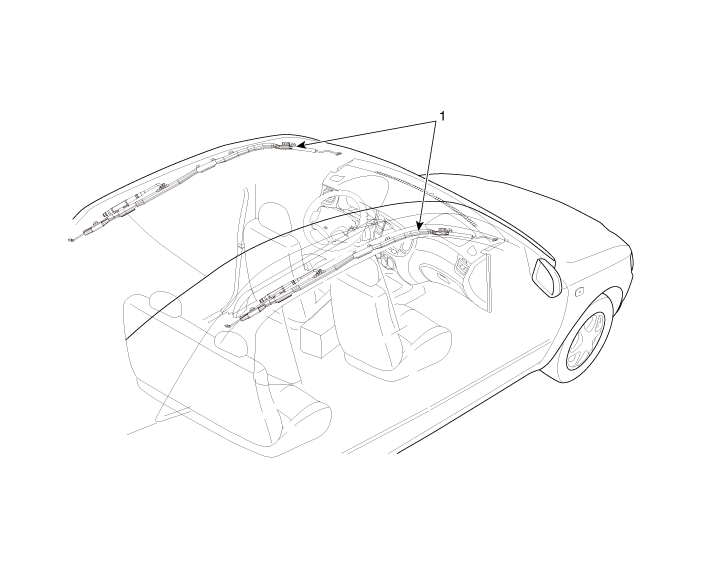

| Curtain Airbag (CAB) |
| 1. Curtain Airbag (CAB) |

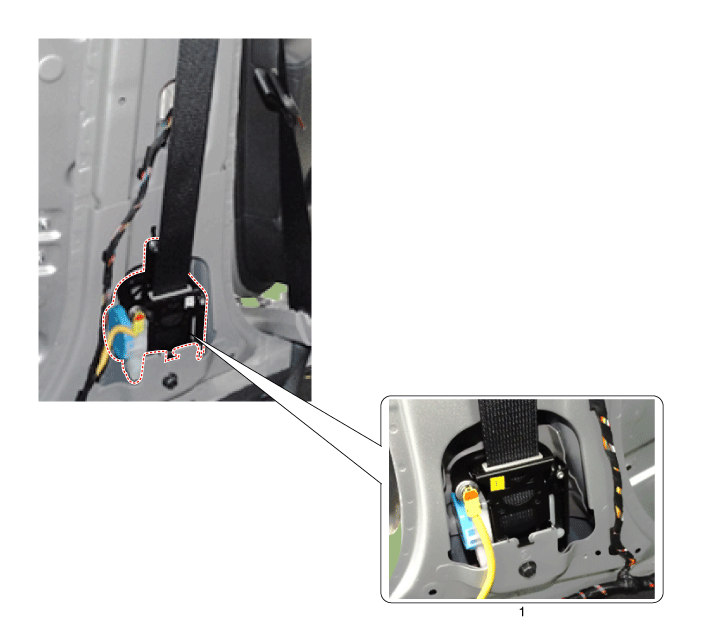

| Seat Belt Pretensioner (BPT) |
| 1. Seat Belt Pretensioner
(BPT) |

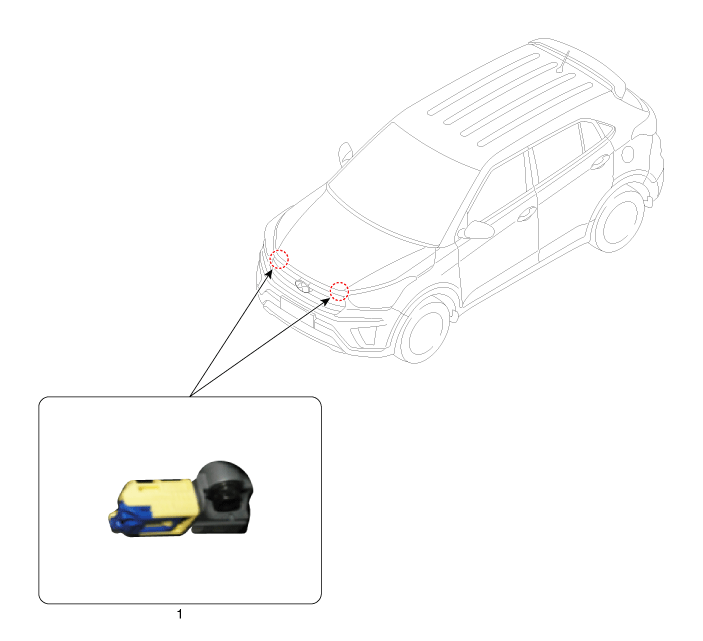

| Front Impact Sensor (FIS) |
| 1. Front Impact Sensor
(FIS) |
| Side Impact Sensor (SIS) |
| 1. Side Impact Sensor (SIS) |
