Hyundai Creta: Floor Console / Components and components location

Hyundai Creta GS 2014-2020 Service Manual / Body (Interior and Exterior) / Floor Console / Components and components location

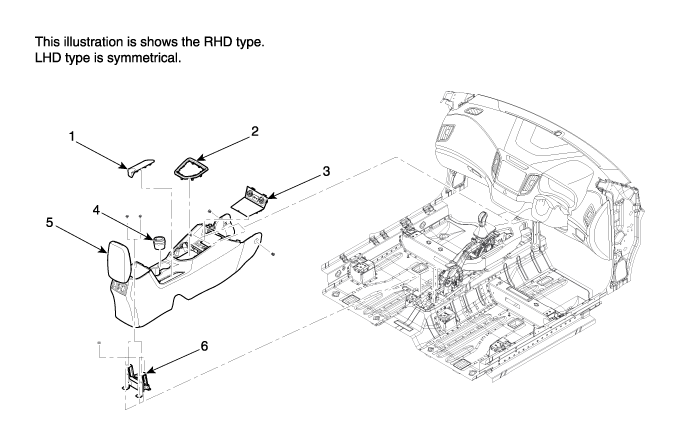

Components

1. Parking brake cover
2. Console upper cover
3. Floor console front bezel

4. Ash tray
5. Floor console assembly
6. Console rear mounting bracket

Floor Console Assembly

Components and components location Component Location 1. Floor console assembly Repair procedures Replacement [MT] ...
