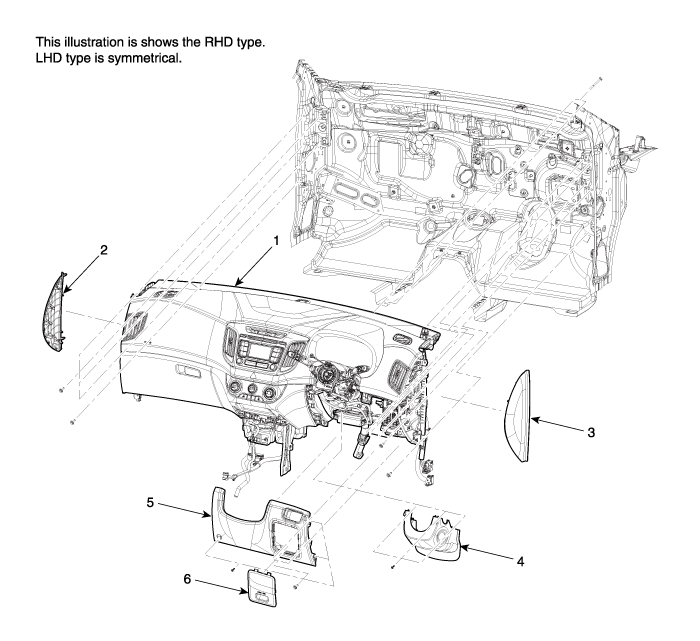

Components (1)

1. Main crash pad assembly
2. Crash pad side cover [LH]
3. Crash pad side cover [RH]

4. Steering column shroud lower panel
5. Crash pad lower panel
6. Fuse box cover

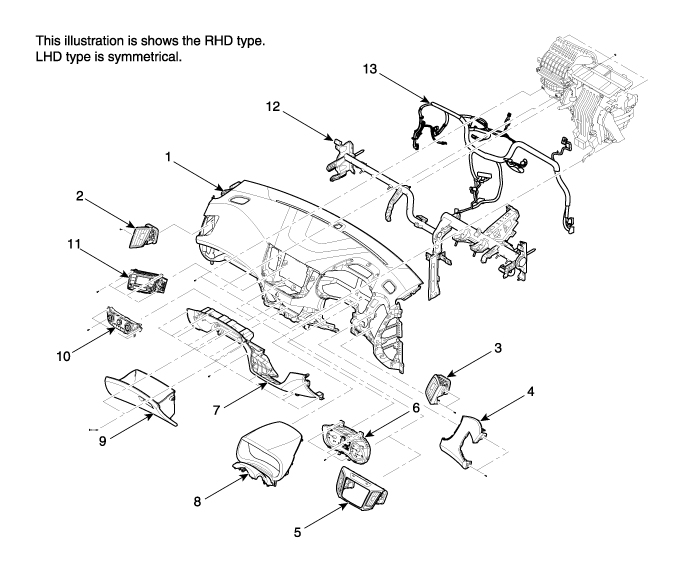

Components (2)

1. Crash pad main assembly
2. Air vent [LH]
3. Air vent [RH]
4. Crash pad garnish [RH]
5. Crash pad center lower tray assembly
6. Cluster assembly
7. Crash pad center panel

8. Cluster fascia panel
9. Glove box
10. Heater & A/C controller
11. Audio unit
12. Cowl cross bar assembly
13. Crash pad main wiring harness
