Hyundai Creta: AVN System / Components and components location

Hyundai Creta GS 2014-2021 Service Manual / Body Electrical System / AVN System / Components and components location

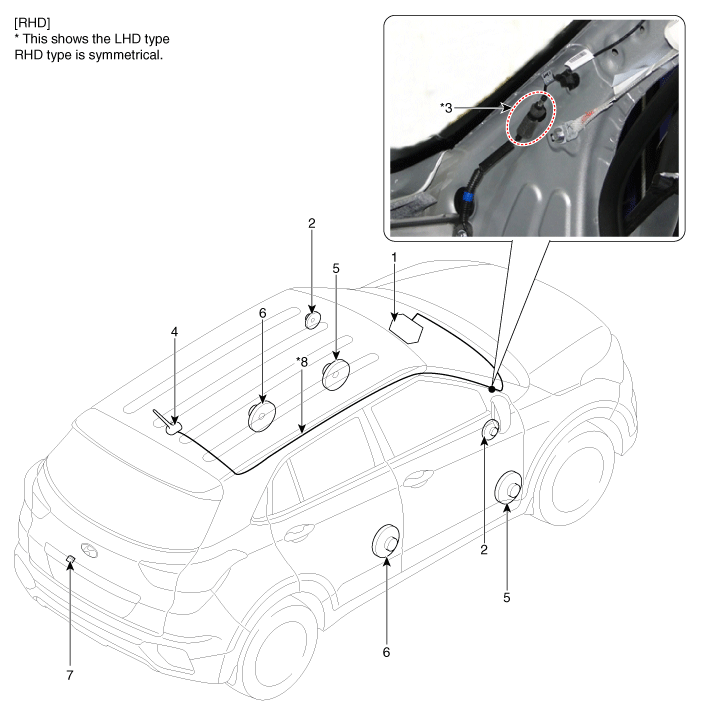

Components Location

1. AVN (PIO)
2. Tweeter speaker
3. Feeder cable joint connector
4. Roof antenna (GPS+AM/FM+TMU)

5. Front door speaker
6. Rear door speaker
7. Back view camera
8. Antenna feeder cable

Description and operation

Description Limitations of the Navigation System • No OEM Navi is pr ...
