Hyundai Creta: Crash Pad / Crash Pad Side Cover

Components and components location

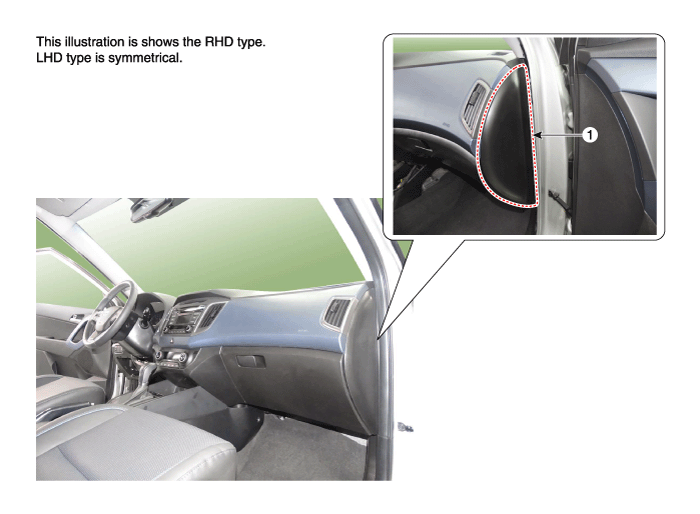

Component Location
[LH]

1. Crash pad side cover [LH]


[RH]

1. Crash pad side cover [RH]


Repair procedures

Replacement

Put on gloves to protect your hands.

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Using a screwdriver or remover, remove the crash pad side cover (A).
[LH]

[RH]

2.
To install, reverse the removal procedure.

Replace any damaged clips.
