Hyundai Creta: Power Door Locks / Components and components location

Hyundai Creta GS 2014-2021 Service Manual / Body Electrical System / Power Door Locks / Components and components location

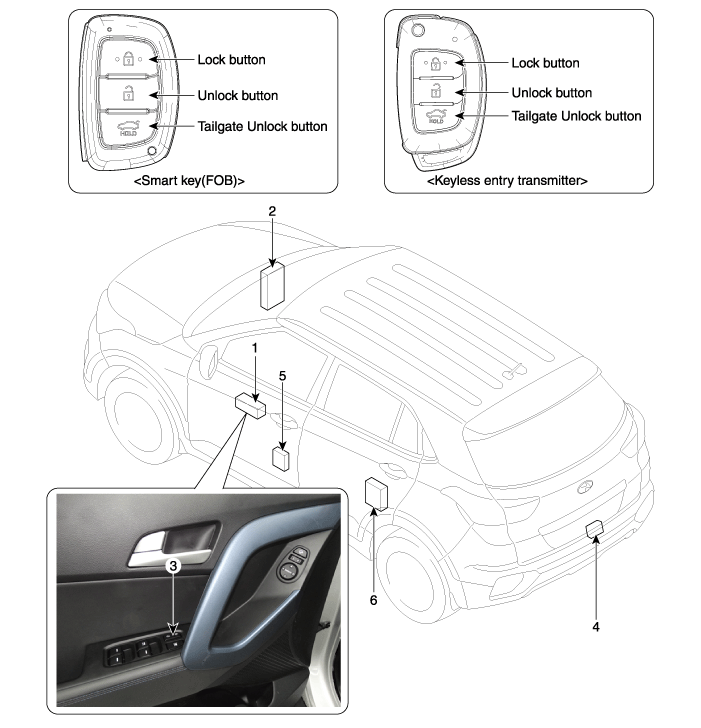

Component Location

1. Driver power window main switch
2. Body Control Module (BCM)
3. Door look switch

4. Tailgate lock actuator & switch
5. Front door lock actuator & switch
6. Rear door lock actuator & switch
