Hyundai Creta: Power Door Mirrors / Components and components location

Hyundai Creta GS 2014-2019 Service Manual / Body Electrical System / Power Door Mirrors / Components and components location

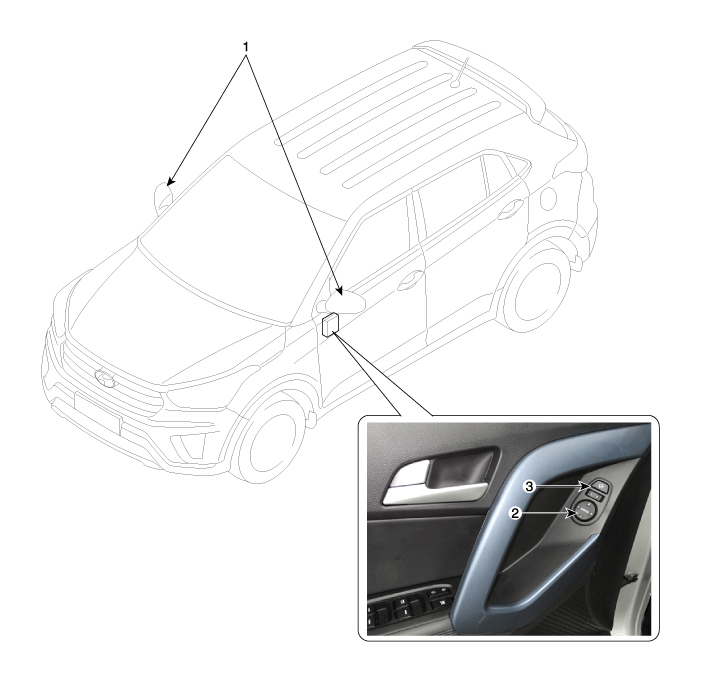

Component Location

1. Power door mirror
2. Power door mirror switch

3. Power folding mirror switch

Power Door Mirror Switch

Schematic diagrams Circuit Diagram Repair procedures Removal 1. Disconnect the negative (-) battery terminal. 2. Remove ...
