Hyundai Creta: Power Door Mirrors / Power Door Mirror Switch
Hyundai Creta GS 2014-2021 Service Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Switch
Schematic diagrams

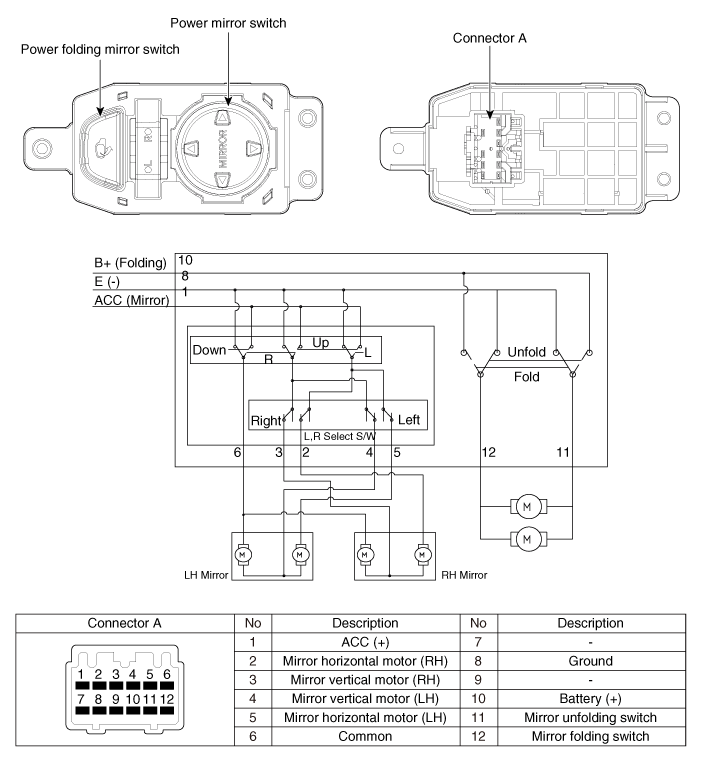

| Circuit Diagram |
Repair procedures
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the front left door trim.
(Refer to Body - "Front Door Trim")
|
| 3. |
Remove the power mirror switch (A) from the door trim.
|
| Installation |
| 1. |
Install the power mirror switch.
|
| 2. |
Install the front door trim after connecting the connector.
|
| 3. |
Connect the negative (-) battery terminal.
|
| Inspection |
| 1. |
Remove the front left door trim.
(Refer to Body - "Front Door Trim")
|
| 2. |
Remove the power mirror switch (A) from the door trim.
|
| 3. |

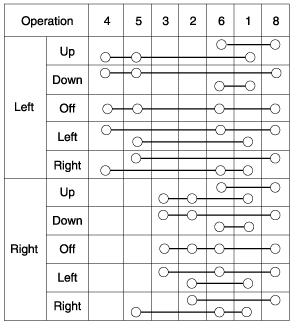

Check for continuity between the terminals in each switch position according
to the table.
[Power Mirror Switch]
[Power Folding Mirror Switch]
|
Components and components location
Component Location
1. Power door mirror
2. Power door mirror switch
3. Power folding mirror switch
...
Power Door Mirror Actuator
Components and components location
Components
Repair procedures
Inspection
1.
Disconnect the negative (-) battery terminal.
2.
...
Other information:
