Hyundai Creta: Rear Glass Defogger / Components and components location

Hyundai Creta GS 2014-2024 Service Manual / Body Electrical System / Rear Glass Defogger / Components and components location

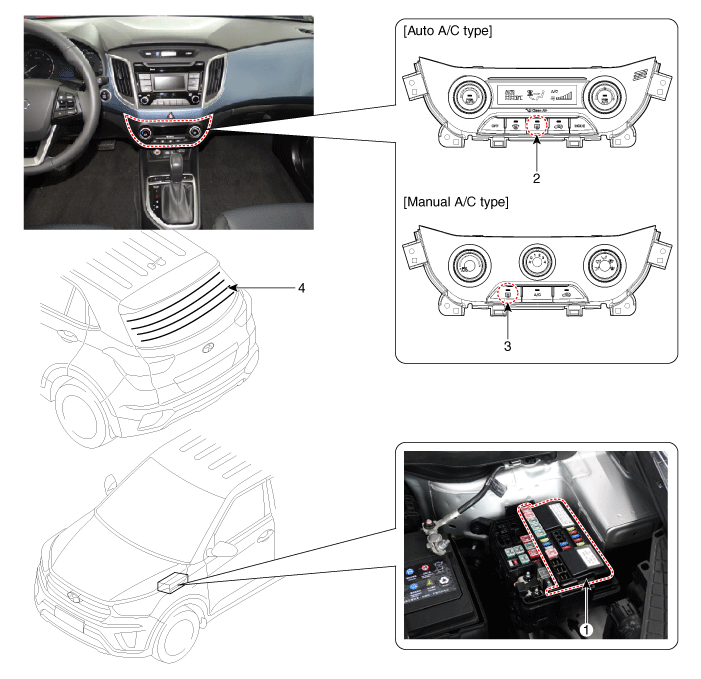

Component Location

1. Rear glass defogger relay (Buil-in engine room relay box)
2. Rear glass defogger switch (Dual type)

3. Rear glass defogger switch (Manual type)
4. Rear glass defogger

Rear Glass Defogger

...

Rear Glass Defogger Printed Heater: Repair procedures

Inspection • Wrap tin foil around the end of the voltmeter test lead to prevent ...
