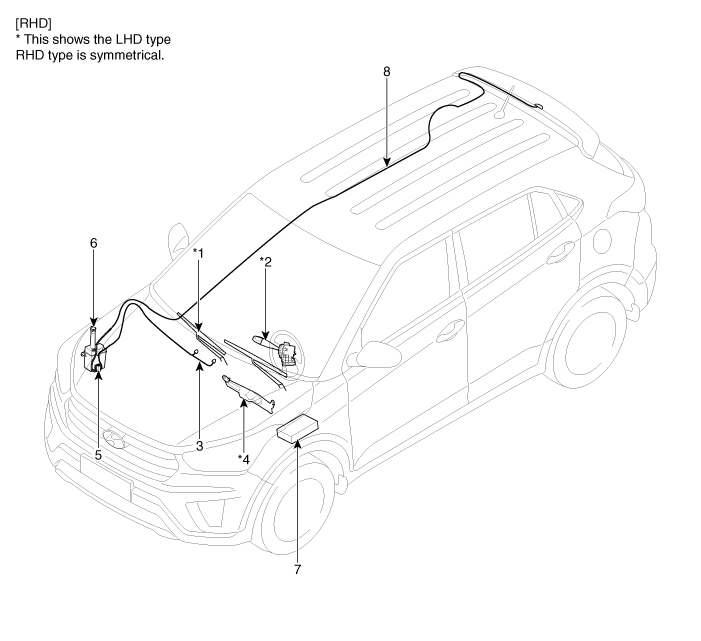

Component Location

1. Windshield wiper arm & blade
2. Wiper & washer switch
3. Windshield washer hose
4. Windshield wiper motor & linkage

5. Washer motor
6. Washer reservoir
7. Front wiper relay (Engine room - PCB Fuse&Relay Block)
8. Rear washer hose & nozzle
