Component Location Index

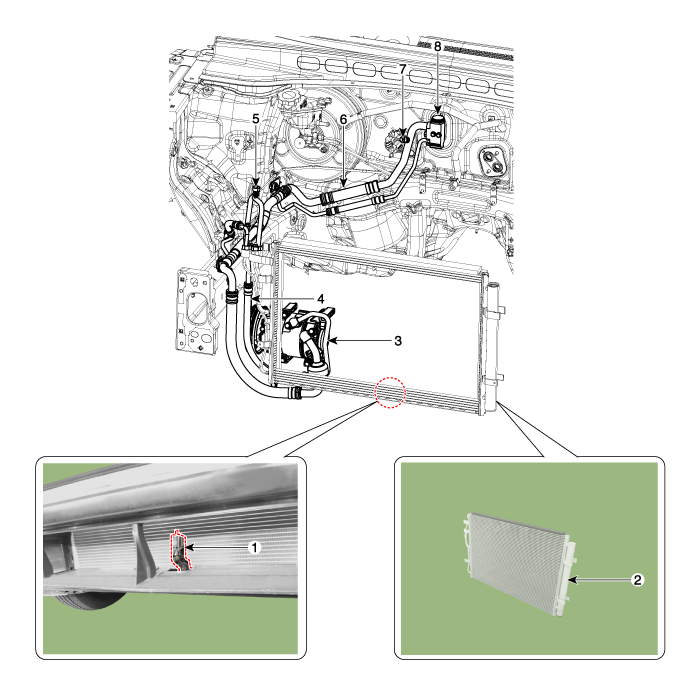

[Engine Room]

1. Ambient temperature Sensor
2. Condenser
3. Compressor
4. Discharge Hose

5. Service Port (High Pressure)
6. Suction & Liquid Tube Assembly
7. Service Port (Low Pressure)
8. Expansion Valve

[Interior]

1. Photo Sensor
2. Heater & Blower Unit
3. Evaporator Temperature Sensor

4. Heater & A/C Control Unit (Manual)
5. Heater & A/C Control Unit (DATC)

Repair procedures

Refrigerant System Service Basics Refrigerant Recovery Use only service equipment that is U.L-listed and is certified to meet the requirements of SAE J2210 to remove HFC-13 ...

Compressor oil: Repair procedures

Oil Specification 1. The HFC-134a system requires synthetic (PAG) compressor oil whereas the R-12 system requires mineral compressor oil. The two oils must never ...
