Removal

1.	Disconnect the negative (-) battery terminal.

2.	If necessary to replace the bulb only, replace the bulb after opening the overhead console lens (A).

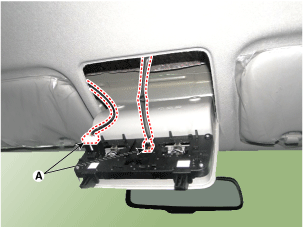

3.	Remove the overhead console (A) after loosening the screws.

4.	Disconnect the connectors (A) of lamp switch then remove the overhead console lamp assembly.

Installation

1.	Install the overhead console lamp after connecting the lamp connector.

2.	Install the overhead console lamp assembly after tightening screws.

Inspection

Remove the overhead console lamp assembly then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.

No	Description
1	Ground (-)
2	Battery (+)
3	Door (-)
4	Room lamp signal (-)

Room Lamp: Repair procedures

Inspection Room Lamp 1. Check that the switch operates properly after disconnecting the room lamp connector (A). ...
