Hyundai Creta: Climate control system / Defroster

NOTICE

To prevent damage to the conductors bonded to the inside surface of the rear window, never use sharp instruments or window cleaners containing abrasives to clean the window.

If you want to defrost and defog the front windshield, refer to “Windshield defrosting and defogging” in this section.

Rear window defroster

In case of the Right-hand drive vehicle, the switches are in the symmetrically opposite order.

The defroster heats the window to remove frost, fog and thin ice from the interior and exterior of the rear window, while engine is running.

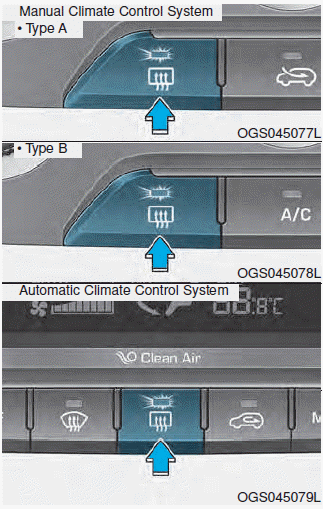

To activate the rear window defroster, press the rear window defroster button located in the climate control system. The indicator on the rear window defroster button illuminates when the defroster is ON.

To turn off the defroster, press the rear window defroster button again.

Information

Outside rearview mirror defroster

If your vehicle is equipped with outside rearview mirror defrosters, they will operate at the same time you turn on the rear window defroster.

Climate control system
...

Manual climate control system
1. Temperature control knob 2. Fan speed control knob 3. Mode selection knob 4. Air intake control button 5. Rear window defroster button 6. A/C (Air conditioning) button In case of the ...
