Hyundai Creta: Fuses And Relays / Junction Box (Engine Compartment)

Hyundai Creta GS 2014-2019 Service Manual / Body Electrical System / Fuses And Relays / Junction Box (Engine Compartment)

Components and components location

Component Location

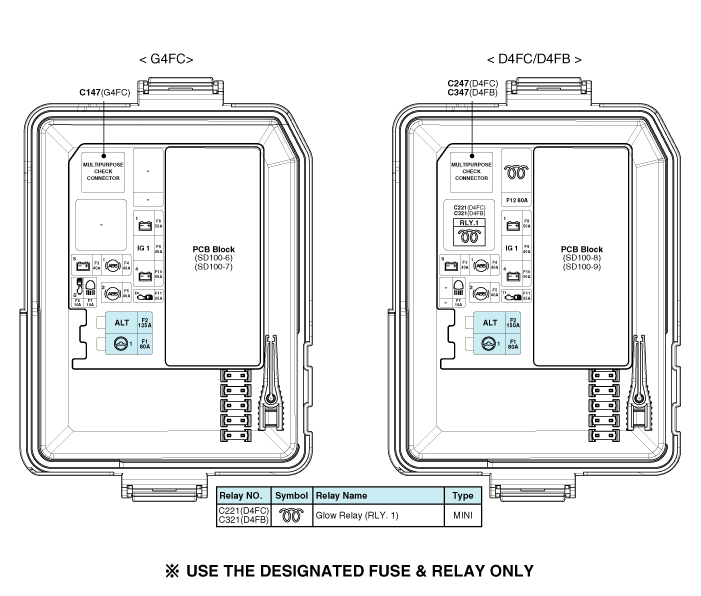

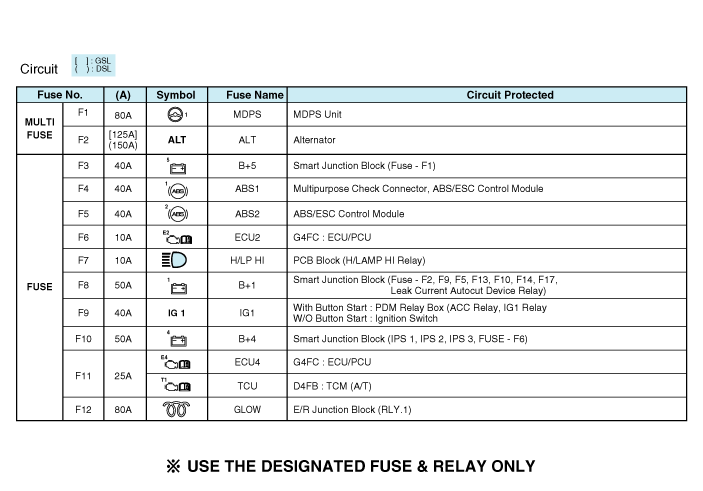

E/R Junction Block

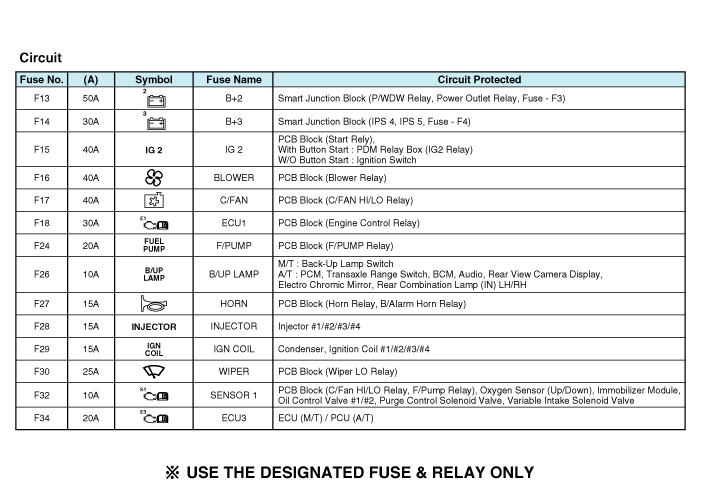

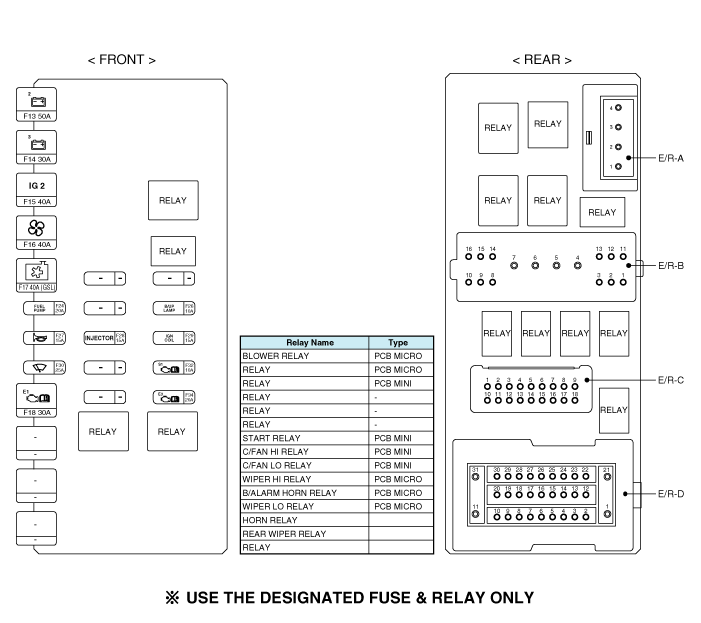

PCB Block (G4FC)

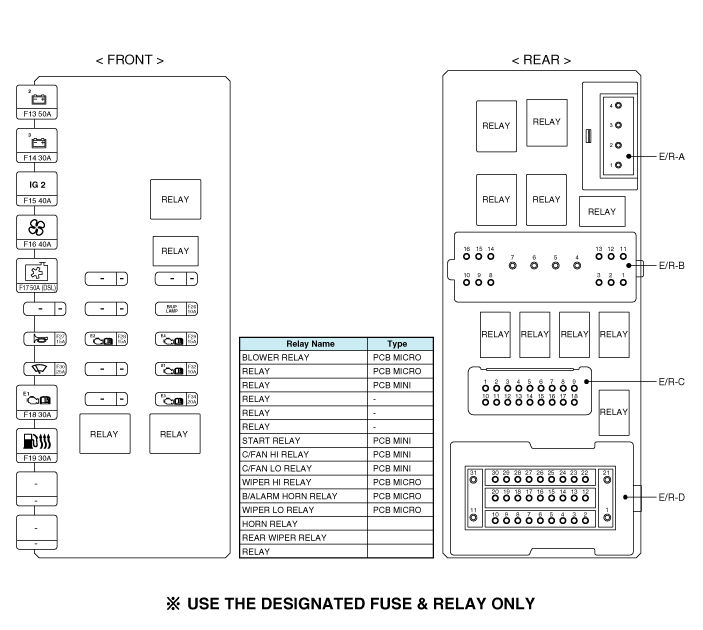

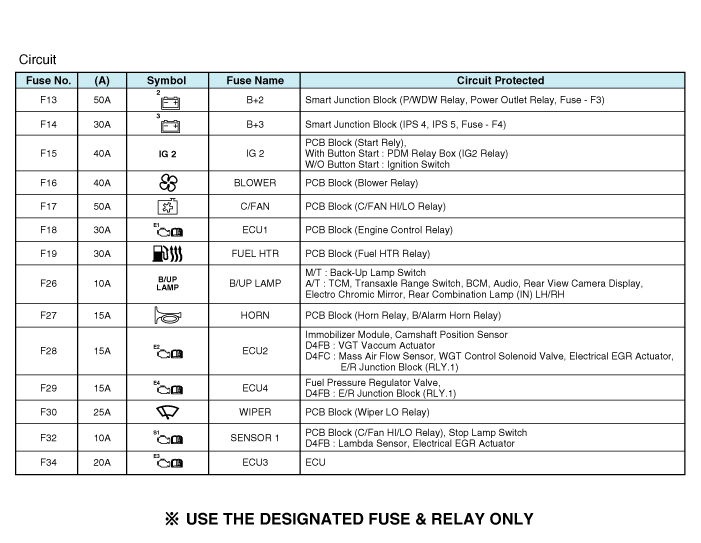

PCB Block (D4FC/D4FB)

Repair procedures

Inspection

PCB block

1.	Disconnect the negative (-) battery terminal.

2.	Disconnect the PCB block connectors (A).

3.	Put up the PCB block (A) after push 6 hooks (B) in the block assembly.

Fuse Inspection

1.	Be sure there is no play in the fuse holders, and that the fuses are held securely.

2.	Are the fuse capacities for each circuit correct?

3.	Are there any blown fuses? If a fuse is to be replaced, be sure to use a new fuse of the same capacity. Always determine why the fuse blew first and completely eliminate the problem before installing a new fuse.

–	Multi fuse is needed to replace in the mass when it damaged only one fuse.

–	When replace the multi fuse, refer to the "Engine compartment - component location" diagram exactly.

–	Use the multi fuse capacities for each circuit correctly.
