Hyundai Creta: Tail Gate / Tail Gate Trim

Hyundai Creta GS 2014-2025 Service Manual / Body (Interior and Exterior) / Tail Gate / Tail Gate Trim

Components and components location

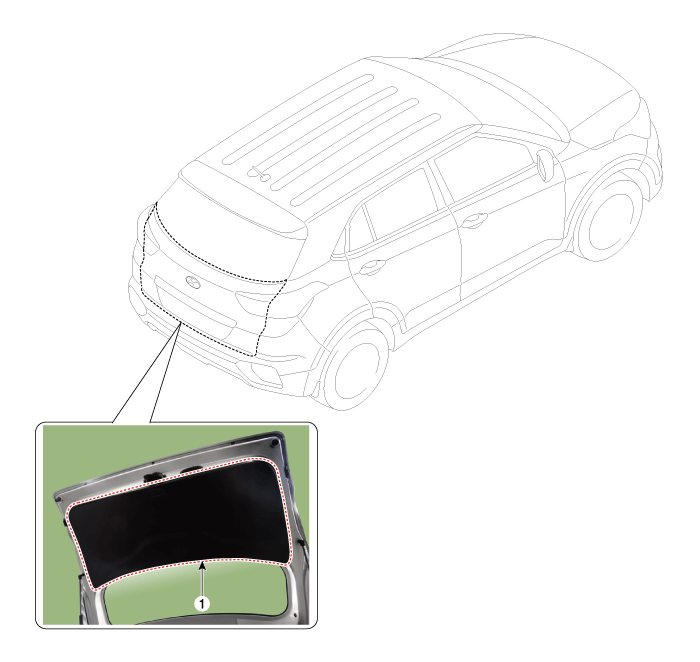

Component Location

1. Tail gate trim

Repair procedures

Replacement

•	Put on gloves to protect your hands.

•	When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

•	Take care not to scratch the body surface.

1.	After loosening the mounting screws, remove the tail gate trim (A).

To install, reverse the removal procedure.

•	Replace any damaged clips.
