Hyundai Creta: Rear Bumper / Rear Bumper beam Assembly
Components and components location

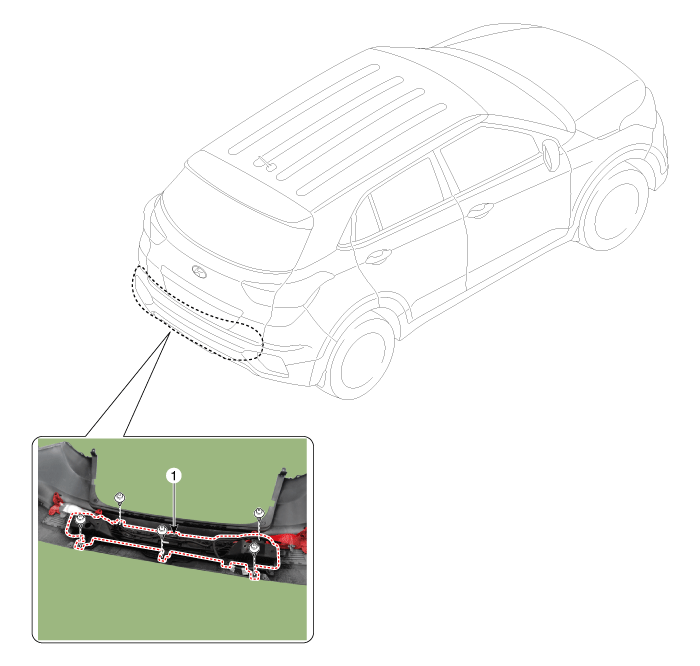

1. Rear bumper beam assembly
|
|
Repair procedures
| • |
Put on gloves to protect your hands.
|
|
| • |
When prying with a flat-tip screwdriver or use a prying trim
tool, wrap it with protective tape, and apply protective tape
around the related parts, to prevent damage.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
to protect from marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the rear bumper cover.
(Refer to Rear Bumper - "Rear Bumper Cover")
|
| 2. |
Disconnect the rear bumper beam mounting wiring harness.
|
| 3. |
After loosening the mounting screws and clips, then remove the rear
bumper beam assembly (A).
|
| 4. |
To install, reverse the removal procedure.
| •
|
Make sure the connector is plugged in properly.
|
| •
|
Replace any damaged clips.
|
|
|
