Inspection

Rear Wiper Motor

Operate the wiper switch to check for continuity between wiper motor terminals

No	Description
1	Speed
2	GND
3	B (+)
4	Parking

2.	Attach the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 3.

Removal

1.	Remove the rear wiper arm & blade (A) after loosening the rear wiper nut (B).

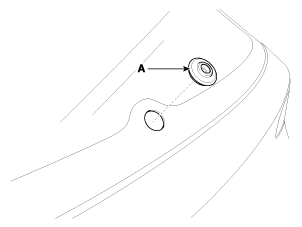

2.	Remove the rear wiper grommet (A).

3.	Remove the tailgate trim after opening the tailgate. (Refer to Body - "Tailgate Trim")

4.	Disconnect the rear wiper motor connector (A) then remove the rear wiper motor (B) after loosening bolts.

Installation

Install the rear wiper motor assembly.

Tightening torque Nut :

6.9 ~ 10.8 Nm (0.7 ~ 1.1 kgf.m, 5.0 ~ 8.0 lbf.ft)

2.	Install the tailgate trim.

Install the rear wiper arm and rear wiper cap.

Tightening torque Nut (B) :

3.9 ~ 6.9 Nm (0.4 ~ 0.7 kgf.m, 2.9 ~ 5.1 lbf.ft)

4.	Blade setting end position is matching for ceramic end line.
