Hyundai Creta: Rear Wiper/Washer / Rear Washer Switch: Repair procedures

Hyundai Creta GS 2014-2021 Service Manual / Body Electrical System / Rear Wiper/Washer / Rear Washer Switch: Repair procedures

Inspection

Multifunction Switch Inspection

Check for continuity between the terminals in each switch position according to the table.

[Left Handle Drive]

Switch	Switch position	Switch terminal	Resistance (Ω, ±3.5%)
Front wiper switch	MIST	1-9	330
	OFF		∞
	INT		800
	LOW		1800
	HIGH		5700
Rear wiper switch	OFF	9-16	∞
	LOW		910
	HIGH		2910
	GND		-

[Right Handle Drive]

Switch	Switch position	Switch terminal	Resistance (Ω, ±3.5%)
Front Wiper switch	MIST	3-16	330
	OFF		∞
	INT		800
	LOW		1800
	HIGH		5700
Rear wiper switch	OFF	9-16	∞
	LOW		910
	HIGH		2910
	GND		-

Inspection (With GDS)

The body electrical system can be quickly diagnosed failed parts with vehicle diagnostic system(GDS).

The diagnostic system(GDS) provides the following information.

(1)	Self diagnosis : Checking the failure code (DTC) and display

(2)	Current data : Checking the system input/output data state

(3)	Actuation test : Checking the system operation condition

(4)	Additional function : Other controlling such as the system option and zero point adjustment

2.	Select the "Car Model" and the system to be checked in order to check the vehicle with the tester.

3.	Select the "Body Control Module (BCM)" to check the multi function switch.

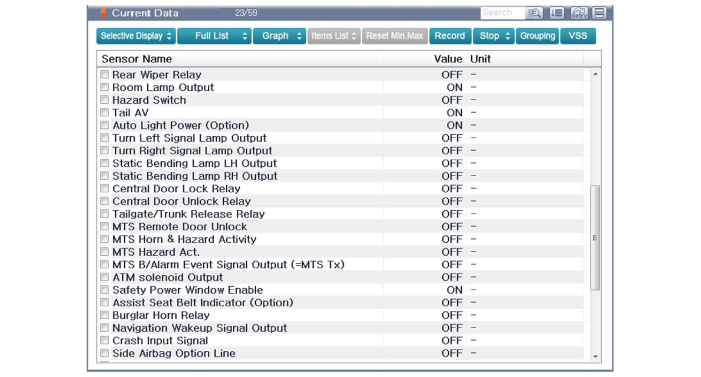

4.	Select the "Current Data" menu to search the current state of the input/output data. The input/output data for the sensors corresponding to the multi function switch can be checked.
