Hyundai Creta: Engine coolant / Recommended engine coolant
- Use only soft (distilled) water in the coolant mixture.
- The engine in your vehicle has aluminum engine parts and must be protected by an ethylene-glycolbased coolant to prevent corrosion and freezing.
- DO NOT USE alcohol or methanol coolant or mix them with the specified coolant.
- Do not use a solution that contains more than 60% antifreeze or less than 35% antifreeze, which would reduce the effectiveness of the solution.

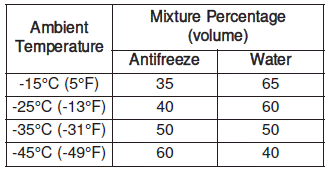

For mixture percentage, refer to the following table.
Checking the coolant level
WARNING
Removing radiator cap
Never attempt to
remove the radiator cap while
the engine is operating or hot.
Doing so might lead to cooling
system and engine damage and
could r ...
Changing the coolant
We recommend that the coolant be
replaced by an authorized HYUNDAI
dealer.
NOTICE
Put a thick cloth or fabric around the
radiator cap before refilling the
coolant in order to prevent the
c ...
