Hyundai Creta: Injector / Schematic diagrams

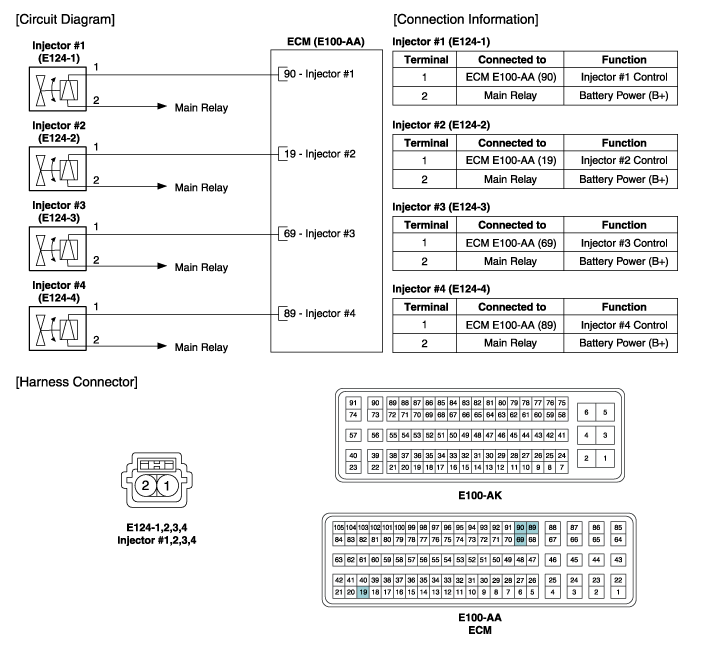

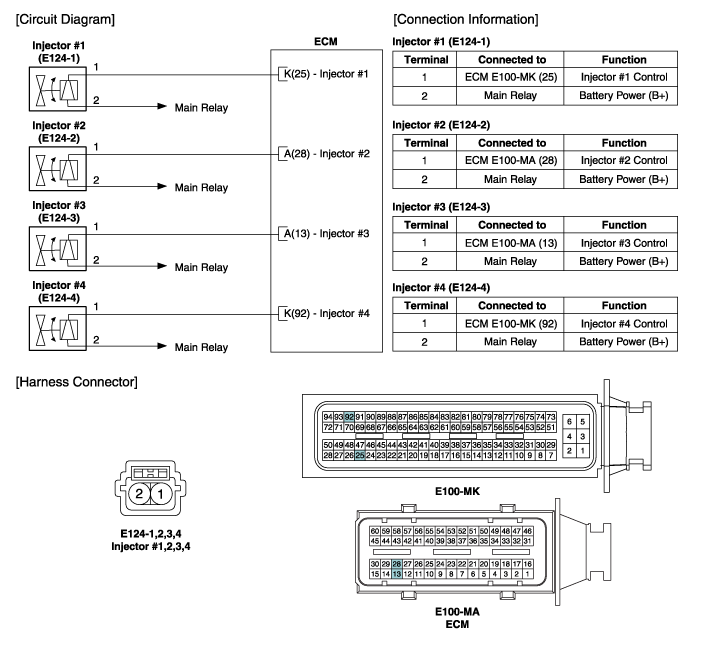

Circuit Diagram
(M/T)

(A/T)

Specifications
Specification Item Specification Coil Resistance (Ω) 13.8 ~ 15.2 [20°C (68°F)] ...

Repair procedures
Inspection 1. Turn ignition switch OFF. 2. Disconnect injector connector. 3. Measure resistance between inject ...
