1.Be sure the vehicle is on level ground.
2.Start the engine and allow it to reach normal operating temperature.
3.Turn the engine off and wait for a few minutes (about 5 minutes) for the oil to return to the oil pan.

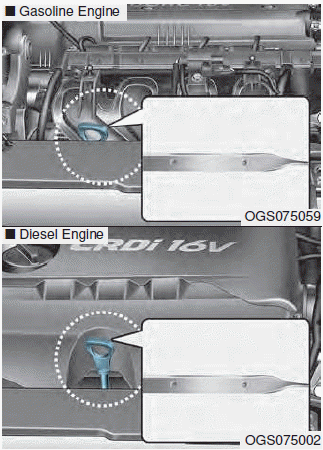

4.Pull the dipstick out, wipe it clean, and reinsert it fully.
WARNING
Radiator hose
Be very careful not to touch the radiator hose when checking or adding the engine oil as it may be hot enough to burn you.
5.Pull the dipstick out again and check the level. The level should be between F (Full) and L (Low).
NOTICE
NOTICE - Diesel Engine
Overfilling the diesel engine oil may cause severe dieseling due to the churning effect. It may damage the diesel engine with the abrupt engine speed incensement, combustion noise, and white smoke emission.

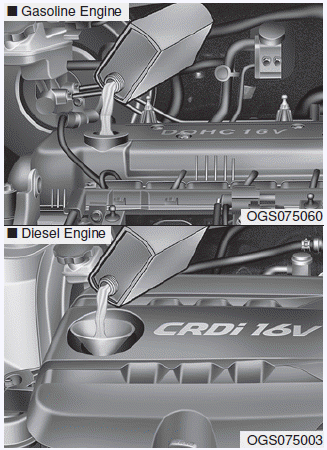

If it is near or at L (Low), add enough oil to bring the level to F (Full). Do not overfill.
Use a funnel to help prevent oil from being spilled on engine components.
Use only the specified engine oil. (Refer to "Recommended lubricants and capacities" in chapter 8.)
