Hyundai Creta: Air bag-supplemental restraint system(SRS) / Driver's and passenger's front air bag

Your vehicle is equipped with a Supplemental Restraint (Air Bag) System and lap/shoulder belts at both the driver and passenger seating positions.

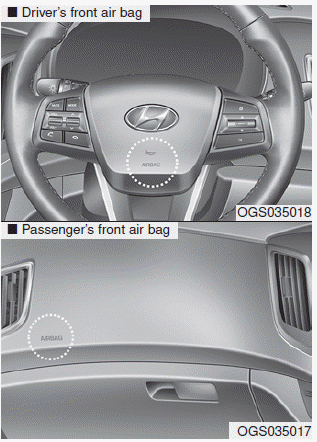

The indications of the system's presence are the letters "AIR BAG" engraved on the air bag pad cover in the steering wheel and the passenger's side front panel pad above the glove box.

The SRS consists of air bags installed under the pad covers in the center of the steering wheel and the passenger's side front panel above the glove box.

The purpose of the SRS is to provide the vehicle's driver and/or the front passenger with additional protection than that offered by the seat belt system alone in case of a frontal impact of sufficient severity.

WARNING

Always use seat belts and child restraints – every trip, every time, everyone! Air bags inflate with considerable force and in the blink of an eye. Seat belts help keep occupants in proper position to obtain maximum benefit from the air bag. Even with air bags, improperly and unbelted occupants can be severely injured when the air bag inflates. Always follow the precautions about seat belts, air bags and occupant safety contained in this manual.

To reduce the chance of serious or fatal injuries and receive the maximum safety benefit from your restraint system:

SRS components and functions
The SRS consists of the following components: (1) Driver's front air bag module* (2) Passenger's front air bag module* (3) Pre-tensioner seatbelt system* (4) Driver's air bag wa ...

Side impact air bag
The actual air bags in the vehicle may differ from the illustration. Your vehicle is equipped with a side impact air bag in each front seat. The purpose of the air bag is to provide the vehi ...
