Hyundai Creta: Safety system of your vehicle / Air bag-supplemental restraint system(SRS)

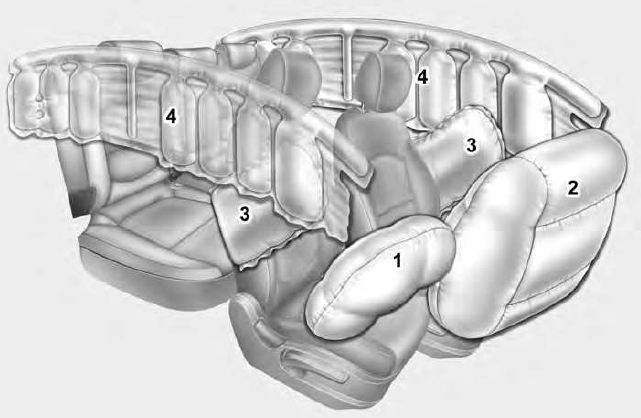

■ Left-hand drive
1. Driver’s front air bag*
2. Passenger’s front air bag*
3. Side impact air bag*
4. Curtain air bag*

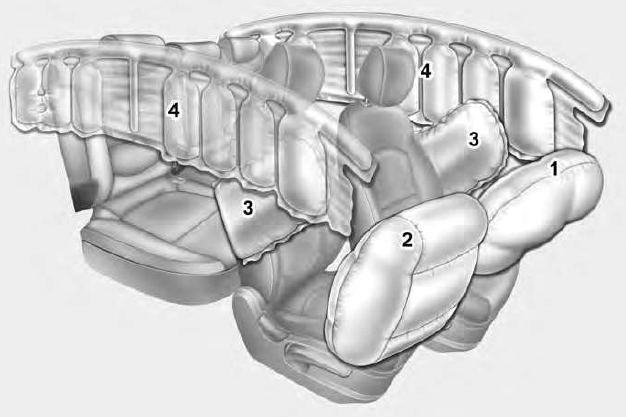

■ Right-hand drive
1. Driver’s front air bag*
2. Passenger’s front air bag*
3. Side impact air bag*
4. Curtain air bag*
WARNING
- Even in vehicles with air bags, you and your passengers must always wear the safety belts provided in order to minimize the risk and severity of injury in the event of a collision or rollover.
- SRS and pretensioners contain explosive chemicals. If scraping a vehicle without removing SRS and pretensioners from a vehicle, it may cause fire. Before scraping a vehicle, we recommend that you contact an authorized HYUNDAI dealer.
- Keep the SRS parts and wirings away from water or any liquid. If the SRS components are inoperative due to exposure to water or liquids, it may cause fire or severe injury.
- How does the air bag system operate
- Do not install a child restraint on the front passenger's seat.
- Air bag warning and indicator
- SRS components and functions
- Driver's and passenger's front air bag
- Side impact air bag
- Curtain air bag
- SRS Care
- Air bag warning label
