Hyundai Creta: Maintenance / Fuses

A vehicle’s electrical system is protected from electrical overload damage by fuses.

This vehicle has 2 fuse panels, one located in the driver’s side panel bolster, the other in the engine compartment near the battery.

If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted.

If the electrical system does not work, first check the driver’s side fuse panel.

Before replacing a blown fuse, disconnect the negative battery cable. Always replace a blown fuse with one of the same rating.

If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved and immediately consult an authorized HYUNDAI dealer.

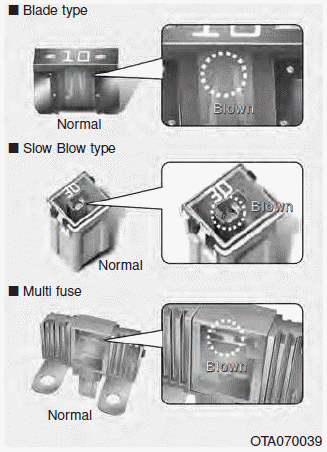

Three kinds of fuses are used: blade type for lower amperage rating, Slow Blow type and multi fuse for higher amperage ratings.

WARNING

Fuse replacement

NOTICE

Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.

Information

The actual fuse/relay panel label may differ from equipped items.

NOTICE

Low aspect ratio tire
The low aspect ratio tires, of which aspect ratio is below 50, are equipped with for the sporty look. Riding with high aspect ratio tires may be uncomfortable with unpleasant noises, because ...

Instrument panel fuse replacement
1. Turn the ignition switch and all other switches off. 2. Open the fuse panel cover. 3. Pull the suspected fuse straight out. Use the fuse puller provided in the engine compartment fuse ...
