Hyundai Creta: Light bulbs / Headlight, position light, turn signal light, static bending light and front fog light bulb replacement

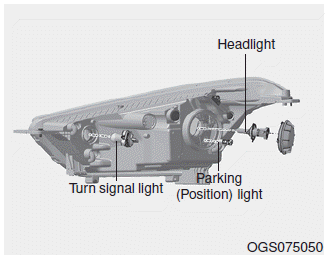

Type A

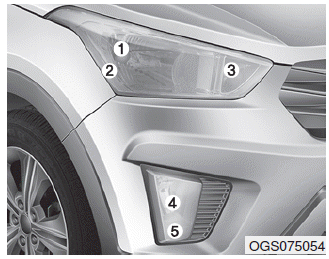

(1) Headlight (Low/High)

(2) Parking (Position) light
(3) Front turn signal light
(4) Front fog light (if equipped)
(5) Daytime running light (if equipped)

WARNING

Halogen bulbs

• Halogen bulbs contain pressurized gas that will produce flying pieces of glass if broken.
• Always handle them carefully, and avoid scratches and abrasions. If the bulbs are lit, avoid contact with liquids. Never touch the glass with bare hands. Residual oil may cause the bulb to overheat and burst when lit. A bulb should be operated only when installed in a headlight.
• If a bulb becomes damaged or cracked, replace it immediately and carefully dispose of it.
• Wear eye protection when changing a bulb. Allow the bulb to cool down before handling it.

Information

If the headlight aiming adjustment is necessary after the headlight assembly is reinstalled, consult an authorized HYUNDAI dealer.

Headlight (Low/High)

1. Open the hood.

2. Remove the headlight bulb cover by turning it counterclockwise.

3. Disconnect the headlight bulb socket-connector.

4. Unsnap the headlight bulb retaining wire by depressing the end and pushing it upward.

5. Remove the bulb from the headlight assembly.

6. Install a new headlight bulb and snap the headlight bulb retaining wire into position by aligning the wire with the groove on the bulb.

7. Connect the headlight bulb socket connector.

8. Install the headlight bulb cover by turning it clockwise.

Turn signal light

1. Remove the turn signal light bulb cover by turning it counterclockwise.

2. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

3. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

4. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

5. Install the turn signal light bulb cover by turning it clockwise.

Parking (Position) light

1. Remove the socket from the assembly by pulling it straight out.

2. Remove the bulb from the socket by pulling it out.

3. Insert a new bulb by inserting it into the socket.

4. Install the socket in the assembly by pushing it in.

Front fog light bulb replacement

1. Remove the under cover by rotating the screws and bolts.

2. Reach your hand into the back of the front bumper.

3. Disconnect the power connector from the socket.

4. Remove the bulb-socket from the housing by turning the socket counterclockwise until the tabs on the socket align with the slots on the housing.

5. Install the new bulb-socket into the housing by aligning the tabs on the socket with the slots in the housing. Push the socket into the housing and turn the socket clockwise.

6. Connect the power connector to the socket.

7. Reinstall the front bumper under cover.

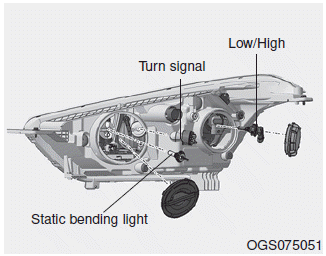

Type B

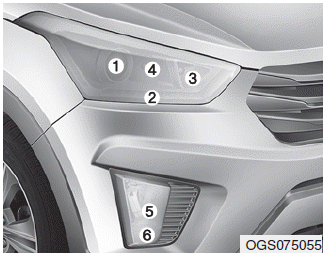

(1) Headlight (Low/High)
(2) Parking (Position) light
(3) Front turn signal light
(4) Static bending light
(5) Front fog light (if equipped)
(6) Daytime running light (if equipped)

WARNING

Halogen bulbs

• Halogen bulbs contain pressurized gas that will produce flying pieces of glass if broken.
• Always handle them carefully, and avoid scratches and abrasions. If the bulbs are lit, avoid contact with liquids. Never touch the glass with bare hands. Residual oil may cause the bulb to overheat and burst when lit. A bulb should be operated only when installed in a headlight.
• If a bulb becomes damaged or cracked, replace it immediately and carefully dispose of it.
• Wear eye protection when changing a bulb. Allow the bulb to cool down before handling it.

Information

If the headlight aiming adjustment is necessary after the headlight assembly is reinstalled, consult an authorized HYUNDAI dealer.

Headlight (Low/High) and static bending light replacement

1. Open the hood.

2. Remove the headlight bulb cover by turning it counterclockwise.

3. Disconnect the headlight bulb socket-connector.

4. Unsnap the headlight bulb retaining wire by depressing the end and pushing it upward.

5. Remove the bulb from the headlight assembly.

6. Install a new headlight bulb and snap the headlight bulb retaining wire into position by aligning the wire with the groove on the bulb.

7. Connect the headlight bulb socket connector.

8. Install the headlight bulb cover by turning it clockwise.

Information - Bi-Function projection headlamp

This headlamp is bi-function type that switches the low beam to high or the high beam to low using solenoid system. So, the moving sound may be heard when the headlamp switches the low beam to high or the high beam to low and it does not indicate malfunction of the headlamp.

Turn signal light

1. Remove the turn signal light bulb cover by turning it counterclockwise.

2. Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.

3. Insert a new bulb by inserting it into the socket and rotating it until it locks into place.

4. Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into the assembly and turn the socket clockwise.

5. Install the turn signal light bulb cover by turning it clockwise.

Front fog light bulb replacement

1.Remove the under cover by rotating the screws and bolts.

2.Reach your hand into the back of the front bumper.

3.Disconnect the power connector from the socket.

4.Remove the bulb-socket from the housing by turning the socket counterclockwise until the tabs on the socket align with the slots on the housing.

5.Install the new bulb-socket into the housing by aligning the tabs on the socket with the slots in the housing. Push the socket into the housing and turn the socket clockwise.

6.Connect the power connector to the socket.

7.Reinstall the front bumper under cover.

Parking (Position light)

If the light does not operate, we recommend that the vehicle be checked by an authorized HYUNDAI dealer.
