Hyundai Creta: Floor Console / Rear Console Cover

Components and components location

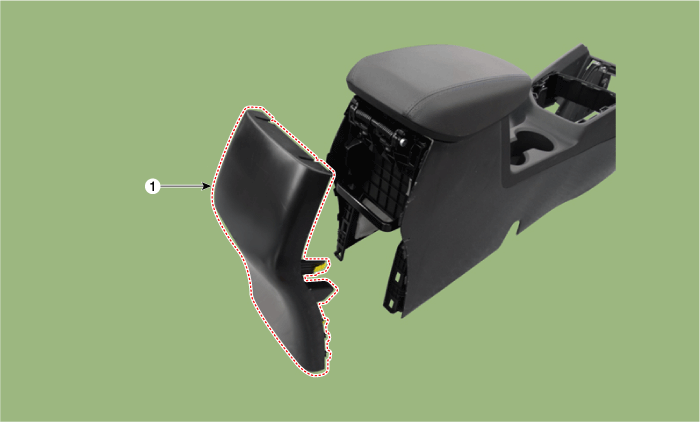

Component Location

1. Rear console cover


Repair procedures

Replacement

Put on gloves to protect your hands.

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
2.
Loosen the rear console cover mounting screws (A).

3.
Using a screwdriver or remover, remove the rear console cover (A).

4.
To install, reverse the removal procedure.

Replace any damaged clips.
