Components |
[LHD] |

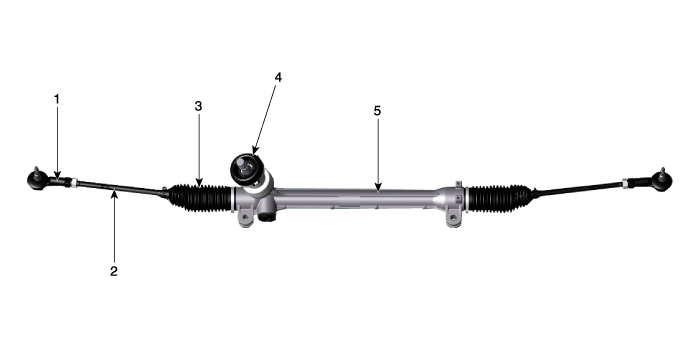

1. Tie
rod end 2. Tie rod 3. Bellows |
4. Dust
cap 5. Steering geer box |
[RHD] |

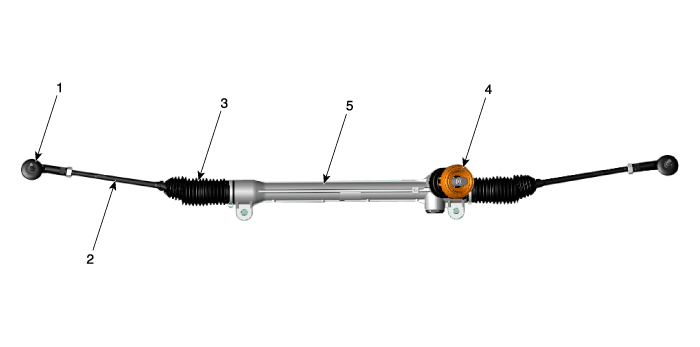

1. Tie
rod end 2. Tie rod 3. Bellows |
4. Dust
cap 5. Steering geer box |
Removal |
1. |
Remove the front wheel & tire.
|
2. |
Separate the stabilizer link (B) from the front strut assembly (A) after
loosening the nut.
|
3. |
Remove the tie rod end ball joint.
|
4. |
Remove the lower arm (B) from the knuckle by loosening the mounting
nut (A).
|
5. |
Loosen the universal joint bolt (A) and then disconnect the universal
joint assembly.
|
6. |
Remove the rubber hanger (A).
|
7. |
Remove the cross member from the body by loosening the roll rod (A)
mounting bolts and nuts.
|
8. |
Set the jack under the front sub frame for safety.
|
9. |
Loosen the mounting bolts & nuts then remove the front sub frame.
|
10. |
Remove stabilizer bar (A) from the front sub frame by loosening the
mounting bolts & nuts. [LHD only]
|
11. |
Remove steering gearbox (A) from the front sub frame by loosening the
mounting bolts.
[LHD]
[RHD]
|
12. |
Install in the reverse order of removal.
|

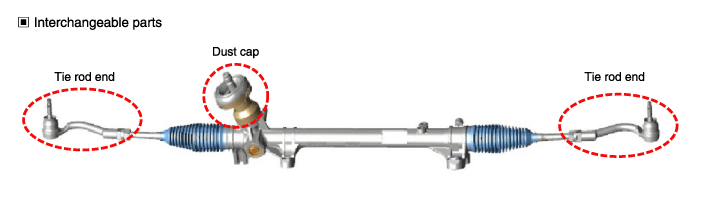

Replacement |
|
1. |
Remove the tie rod end after loosening the nut.
|
2. |
Replace with new parts.
|
3. |
Check the alignment.
(Refer to Tires/Wheels - "Alignment")
|
1. |
Remove the dust cap cover.
|
2. |
Pull the upwards and remove the dust cap.
|
3. |
Installation is the reverse of removal.
|
