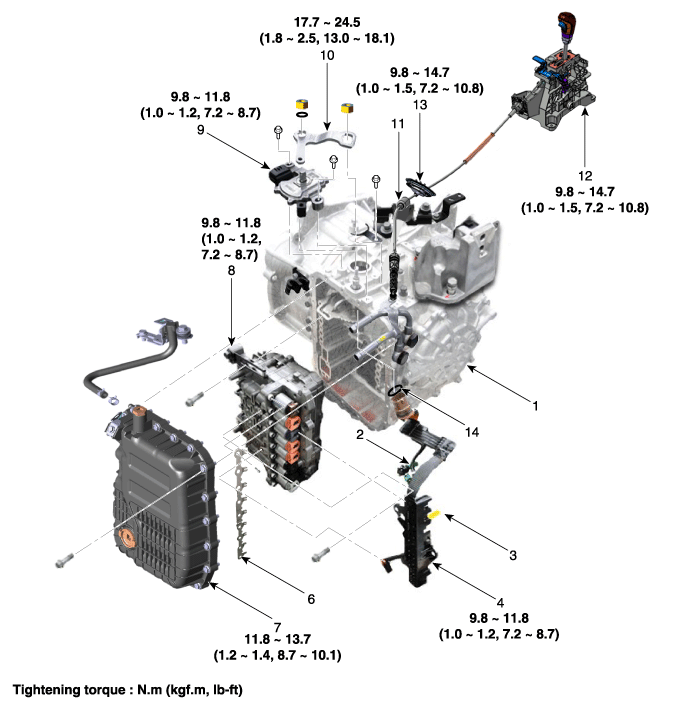

Components Location(1)

1. Automatic transaxle
2. Output speed sensor
3. Input speed sensor
4. Solenoid valve connector
5. Oil temperature sensor
6. Solenoid valve mounting bracket
7. Valve body cover

8. Valve body assembly
9. Inhibitor switch
10. Manual control lever
11. Shift cable
12. Shift lever
13. Shift cable retainer
14. O-Ring

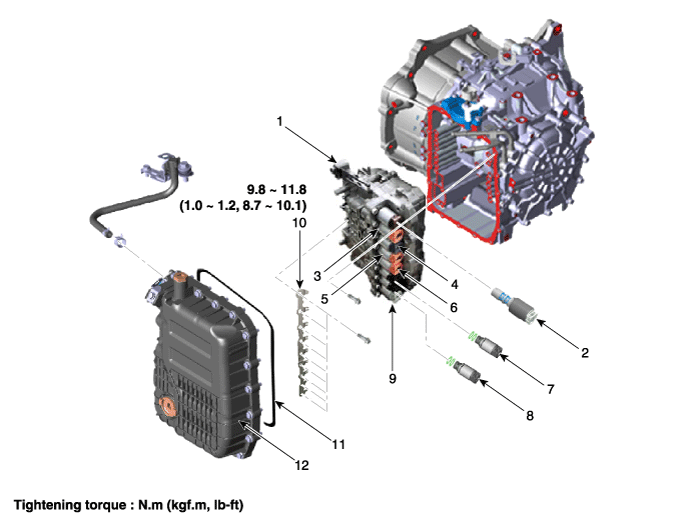

Components Location(2)

1. Valve body assembly
2. Torque Converter Control Solenoid Valve (T/CON)
3. 35R Clutch Control Solenoid Valve (35R/C)
4. 26 Brake Control Solenoid Valve (26/B)
5. Underdrive Brake Control Solenoid Valve (UD/B)
6. Overdrive Clutch Control Solenoid Valve (OD/C)

7. SS-B Solenoid Valve (ON/OFF)
8. SS-A Solenoid Valve (ON/OFF)
9. Line Pressure Control Solenoid Valve
10. Solenoid valve mounting bracket
11. Valve body cover gasket
12. Valve body cover

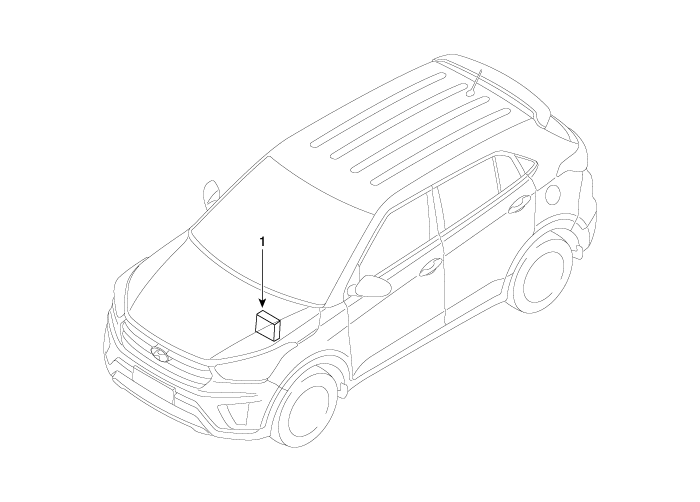

Components Location(3)

1. Transaxle Control Module

Description and operation

Description • Automatic transaxle system relies on various measurement data to determine the current control status and extrapolate the necessary compensation ...

Schematic diagrams

Circuit Diagram ...
