| Description |
| • |
Automatic transaxle system relies on various measurement data to determine
the current control status and extrapolate the necessary compensation
values.
|
| • |
These values are used to control the actuators and achieve the desired
control output.
|
| • |
If a problem with the drivetrain, including the transaxle, has been
identified, perform self-diagnosis and basic transaxle inspection (oil
and fluid inspection) and then check the control system's components
using the diagnosis tool.
|

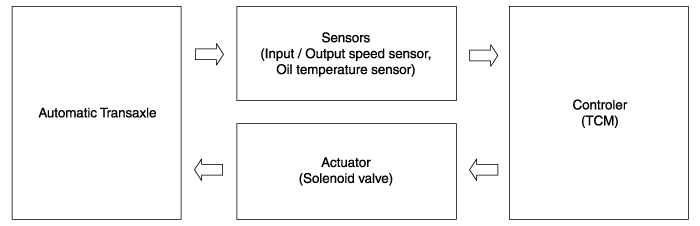

| Control System Composition |
Components and components location
Components Location(1)
1. Automatic transaxle
2. Output speed sensor
3. Input speed sensor
4. Solenoid valve connector
5. Oil temperature sensor
6. Solenoid ...
