| Components |

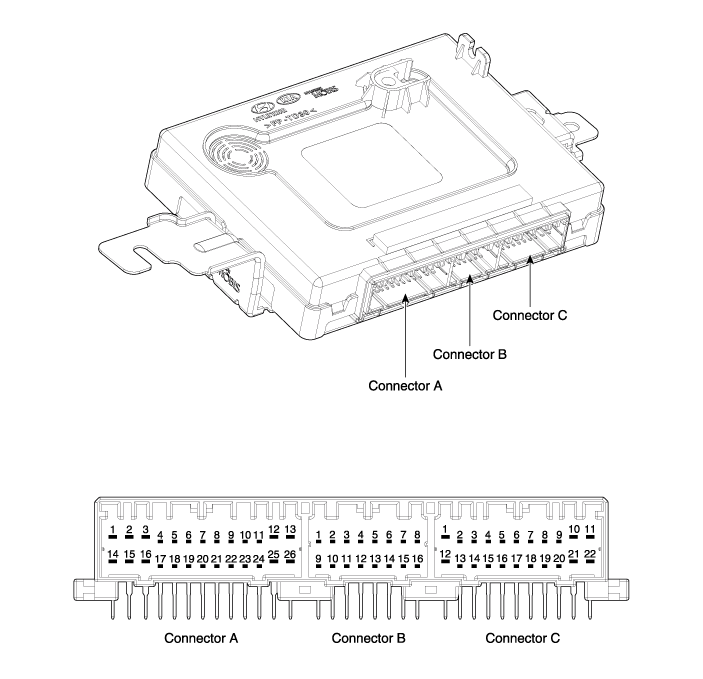

Connector Pin Information
|
No |
Connector A |
Connector B |
Connector C |
|
1 |
Left static bending relay_output |
- |
Front wiper intermittent volume_input |
|
2 |
Turn signal (Power)_output |
RPAS (LIN) |
Multifunction light switch_input |
|
3 |
Left front turn signal_output |
Diagnosis |
Foglamp switch_input |
|
4 |
Right rear turn signal_output |
Ground (Multifunction switch) |
Head lamp high switch_input |
|
5 |
- |
Front wiper low backup switch_input |
Wiper parking state_input |
|
6 |
Rear defogger relay_output |
Brake switch_input |
Airbac crash signal_input |
|
7 |
AV tail_output |
Wiper washer switch_input |
- |
|
8 |
Wiper relay (High / Low)_output |
Body CAN (High) |
- |
|
9 |
- |
- |
- |
|
10 |
Door lock relay_output |
ATM solenoid_output |
ACC_input |
|
11 |
Rear wiper relay_output |
- |
Battery (+) |
|
12 |
IGN 2_input |
- |
Ground |
|
13 |
- |
- |
Front wiper switch_input |
|
14 |
Static bending light (B+)_output |
Rear washer switch_input |
Turn signal switch_input |
|
15 |
Right static bending relay_output |
Inhibit switch (R) |
Rear wiper switch_input |
|
16 |
Right front turn signal_output |
Body CAN (Low) |
- |
|
17 |
Left rear turn signal_output |
|
Side Airbag (Option)_input |
|
18 |
Alarm horn relay_output |
Rear defogger switch_input |
|
|
19 |
Wiper ON relay_output |
Key IN switch_input |
|
|
20 |
Tailgate unlock relay_output |
Hazard switch_input |
|
|
21 |
Safety power window enable_output |
Roomlamp_output |
|
|
22 |
Door unlock relay_output |
IGN 1 |
|
|
23 |
Start inhibit relay_output |
|
|
|
24 |
MTS TX_output |
||
|
25 |
- |
||
|
26 |
Ground |
Specifications
Specifications
Items
Specifications
Rated voltage
DC 12V
Operating voltage
DC 9 ~ 16V
...
Schematic diagrams
Circuit Diagram
...
