Components and components location

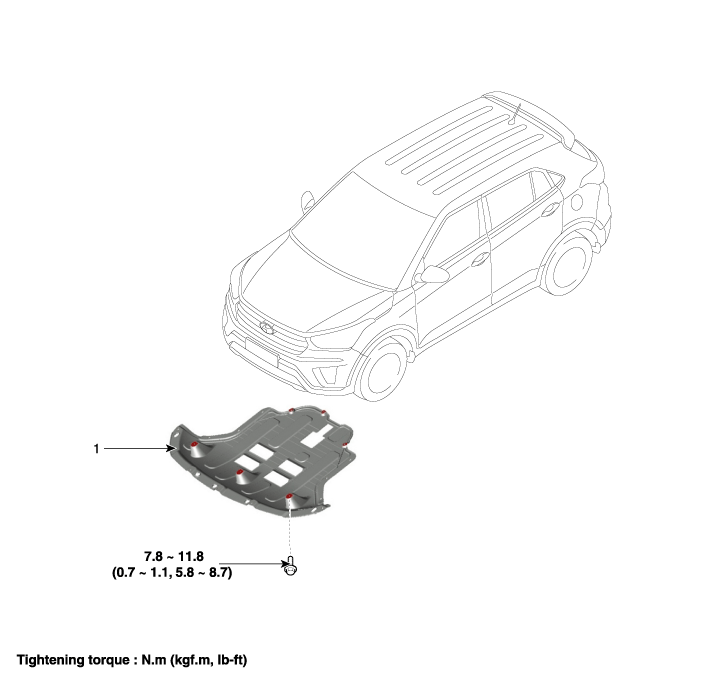

Components

1. Engine room side cover

Repair procedures

Removal and Installation

Engine room under cover front pannel

Remove the engine room under cover (A).

Tightening torque :

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

2.	Install in the reverse order of removal.

Engine Cover: Repair procedures

Removal and Installation 1. Remove the engine cover (A). 2. Install in the reverse order of removal. ...
