Hyundai Creta: Instrument cluster / Gauges

Speedometer

The speedometer indicates the speed of the vehicle and is calibrated in kilometers per hour (km/h).

Tachometer

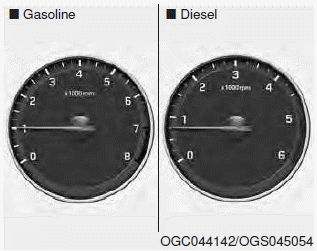

The tachometer indicates the approximate number of engine revolutions per minute (rpm).

Use the tachometer to select the correct shift points and to prevent lugging and/or over-revving the engine.

NOTICE

Do not operate the engine within the tachometer's RED ZONE. This may cause severe engine damage.

Engine Coolant Temperature Gauge

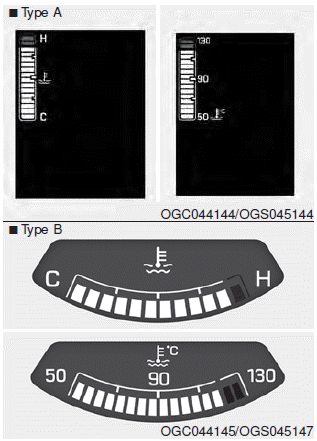

This gauge shows the temperature of the engine coolant when the ignition switch is in the ON position.

NOTICE

If the gauge pointer moves beyond the normal range area toward the “H or 130” position, it indicates overheating that may damage the engine.

Do not continue driving with an overheated engine. If your vehicle overheats, refer to “If the Engine Overheats” in chapter 6.

WARNING

Never remove the radiator cap and reservoir cap when the engine is hot. The engine coolant is under pressure and could cause severe burns. Wait until the engine is cool before adding coolant to the reservoir.

Fuel Gauge

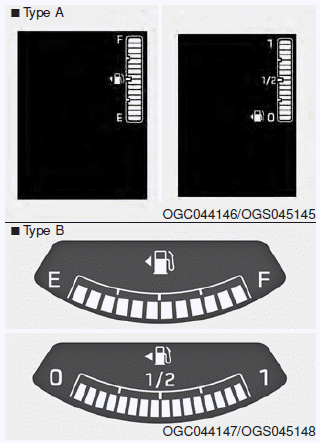

This gauge indicates the approximate amount of fuel remaining in the fuel tank.

WARNING

Running out of fuel can expose vehicle occupants to danger.

You must stop and obtain additional fuel as soon as possible after the warning light comes on or when the gauge indicator comes close to the “E (Empty) or 0” level.

NOTICE

Avoid driving with a very low fuel level. Running out of fuel could cause the engine to misfire damaging the catalytic converter.

Odometer

The odometer indicates the total distance that the vehicle has been driven and should be used to determine when periodic maintenance should be performed.

Outside Temperature Gauge

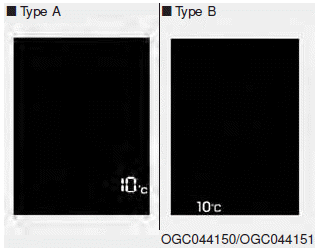

This gauge indicates the current outside air temperatures by 1°C (1°F).

- Temperature range :
- 40°C ~ 85°C (-40°F ~ 211°F)

The outside temperature on the display may not change immediately like a general thermometer to prevent the driver from being inattentive.

To change the temperature unit from °C to °F or °F to °C or

T y p e A

Press the RESET button for more than 5 seconds when the distance to empty is displayed.

T y p e B

Go to User Settings Mode ➝ Other Features ➝ Temperature Unit.

Automatic Transaxle Shift Indicator

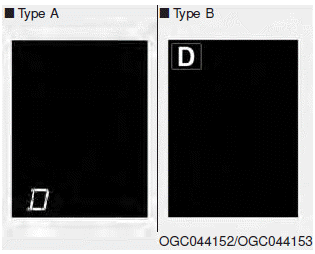

This indicator displays which automatic transaxle shift lever is selected.

Manual Transaxle Shift Indicator

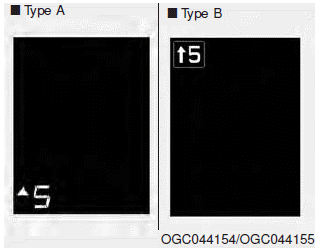

This indicator informs which gear is desired while driving to save fuel.

For example

: Indicates that shifting up to the 3rd gear is desired (currently the shift lever is in the 2nd or 1st gear).
: Indicates that shifting down to the 3rd gear is desired (currently the shift lever is in the 4th, 5th, or 6th gear).

When the system is not working properly, the indicator is not displayed.

Gear Shift Pop-up

The pop-up displays the current gear position selected for 2 seconds (P/R/N/D).

Instrument Cluster Control
WARNING Never adjust the instrument cluster while driving. This could result in loss of control and lead to an accident that may cause death, serious injury, or property damage. Adjusting In ...

Warning and indicator lights
Air bag Warning Light Once you set the ignition switch or Engine Start/Stop button to the ON position. - It illuminates for approximately 6 seconds and then goes off. When there is ...
