Hyundai Creta: Instrument cluster / Instrument Cluster Control
WARNING
Never adjust the instrument cluster while driving. This could result in loss of control and lead to an accident that may cause death, serious injury, or property damage.
Adjusting Instrument Cluster Illumination

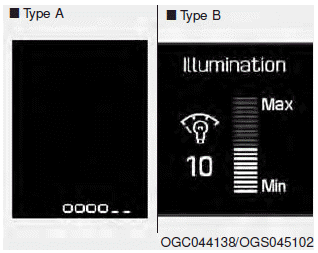

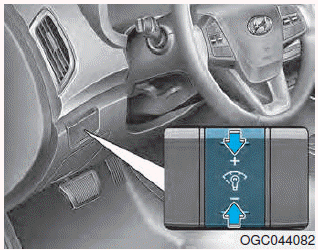

The brightness of the instrument panel illumination changes by pressing the upper or lower part of the switch when the ignition switch is in the ON position and when the parking lights are turned on.
If the brightness reaches to the maximum or minimum level, a chime will sound (if equipped).
Instrument cluster
1. Tachometer
2. Speedometer
3. Fuel gauge
4. Engine coolant temperature gauge
5. Warning and indicator lights
6. Odometer/Trip computer
7. LCD display (including trip computer) ...
Gauges
Speedometer
The speedometer indicates the speed
of the vehicle and is calibrated in kilometers
per hour (km/h).
Tachometer
The tachometer indicates the
approximate number of engine revolu ...
