Hyundai Creta: Convenient features of your vehicle / Instrument cluster

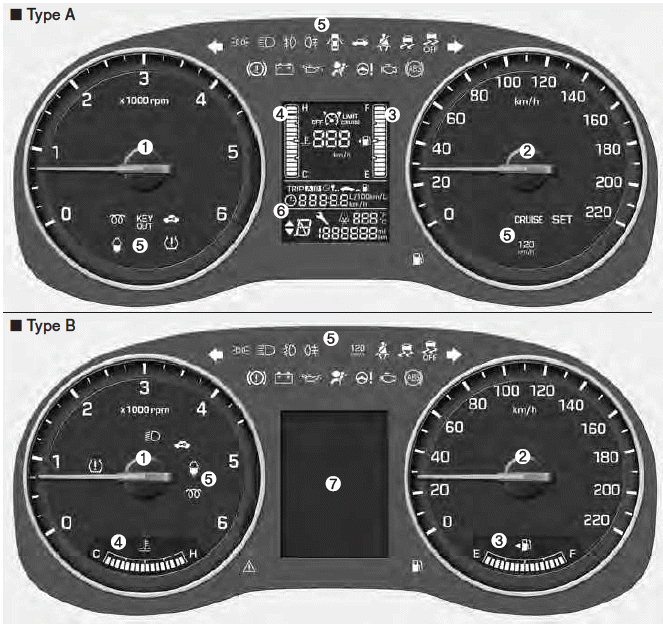

1. Tachometer
2. Speedometer
3. Fuel gauge
4. Engine coolant temperature gauge
5. Warning and indicator lights
6. Odometer/Trip computer
7. LCD display (including trip computer)
- Instrument Cluster Control
- Gauges
- Warning and indicator lights
- Warning Messages (for Type B, if equipped)
- LCD display
- Trip computer
