Hyundai Creta: Head Lamp Leveling Device / Head Lamp Leveling Switch

Hyundai Creta GS 2014-2019 Service Manual / Body Electrical System / Head Lamp Leveling Device / Head Lamp Leveling Switch

Components and components location

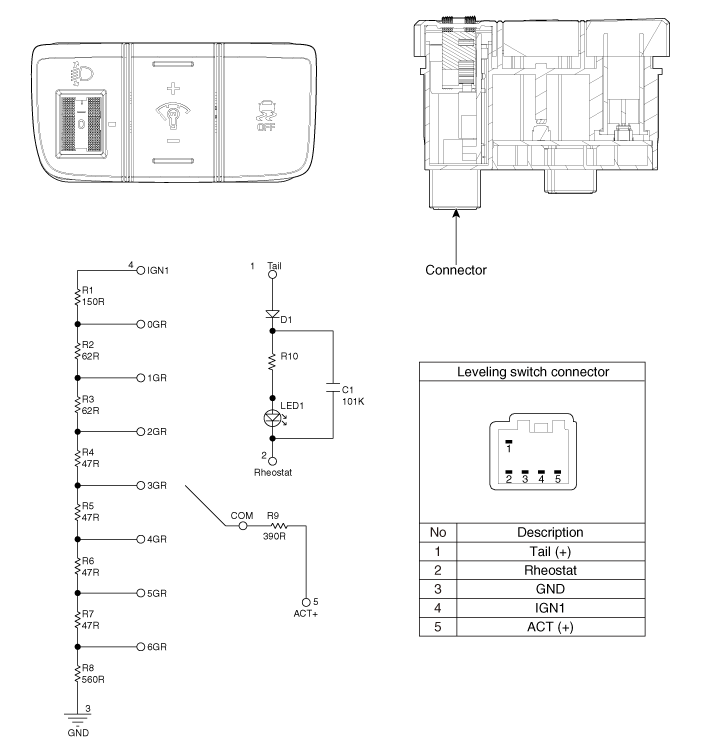

Components

Repair procedures

Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Remove the crash pad side cover.
3.
Remove the crash pad lower panel (A).
(Refer to Body - "Crash Pad Lower Panel")
4.
Connect the battery voltage (13.5V) between terminals 3 and 4.
5.
Measure the voltage between terminals 4 and 5 at each position.

Switch Position
Rotation
Voltage (V) (±5V)
0
 0°
11.4
1
 18°
 10.7
2
 36°
 9.9
3
 54°
 9.4
4
 72°
 8.8
5
 90°
 8.3
6
 108°
 7.7

Components and components location
Component Location 1. Head lamp leveling switch 2. Head lamp leveling actuator ...
