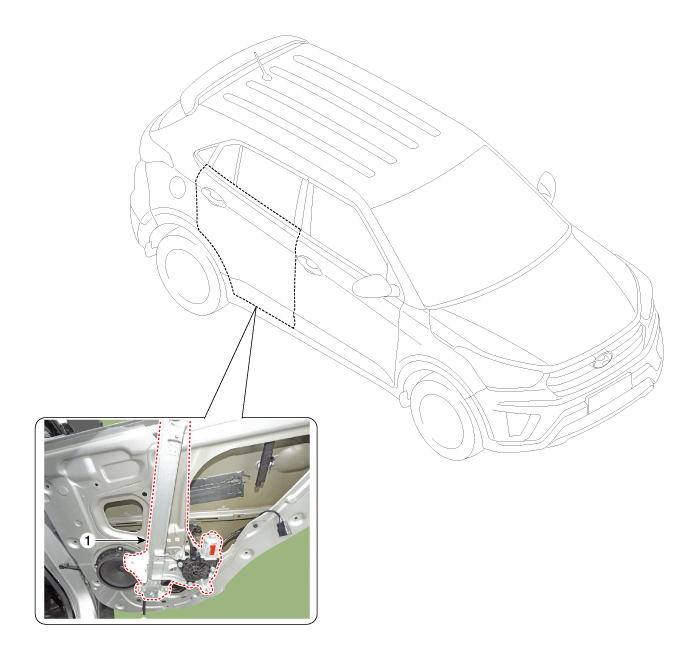

Component Location

1. Rear door power window regulator

Repair procedures

Replacement

1.	Remove the rear door window glass. (Refer to Rear Door - "Rear Door Window Glass")

2.	Disconnect the rear power window motor connector (A).

Loosen the rear door power window regulator mounting nuts.

Tightening torque :

3.9 ~ 5.9N.m (0.4 ~ 0.6kgf.m, 2.9 ~ 4.3 lb-ft)

4.	Remove the rear door power window regulator assembly (A).

5.	After loosening the mounting screws, remove the rear door power window motor. (Refer to Body Electrical System - "Power Window Motor")

To install, reverse the removal procedure.

•	The area of whole parts should be applied with sufficient grease.

•	Make sure connectors are connected properly and each rod is connected securely.

•	Make sure the door locks/unlocks and opens/closes properly.
