Hyundai Creta: Light bulbs / Interior light bulb replacement

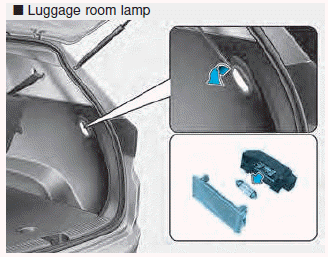

1. Using a flat-blade screwdriver, gently pry the lens from the interior lamp housing.
2. Remove the bulb by pulling it straight out.
WARNING
Prior to working on the Interior lamps, ensure that the “OFF” button is depressed to avoid burning your fingers or receiving an electric shock.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior lamp housing notches and snap the lens into place.
NOTICE
Use care not to dirty or damage lens, lens tab, and plastic housings.
License plate light bulb replacement
1.Remove the tailgate trim.
2.Remove the socket by turning it
counterclockwise.
3.Remove the bulb by pulling it
straight out.
4.Install a new bulb.
5.Install the socket by turning it
clock ...
