Hyundai Creta: Light bulbs / License plate light bulb replacement

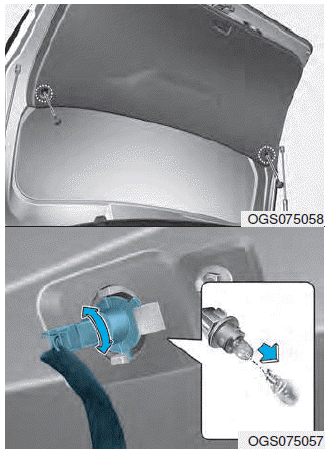

1.Remove the tailgate trim.
2.Remove the socket by turning it counterclockwise.
3.Remove the bulb by pulling it straight out.
4.Install a new bulb.
5.Install the socket by turning it clockwise.
6.Install the tailgate trim.
