Hyundai Creta: Scheduled maintenance service / Maintenance under severe usage conditions (Except Mexico) – Gasoline engine

Hyundai Creta GS 2014-2019 Owners Manual / Maintenance / Scheduled maintenance service / Maintenance under severe usage conditions (Except Mexico) – Gasoline engine

The following items must be serviced more frequently on cars mainly used under severe driving conditions.

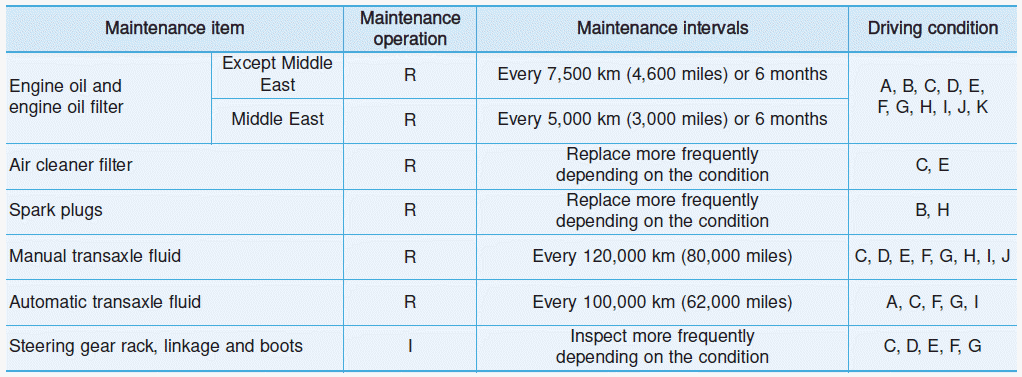

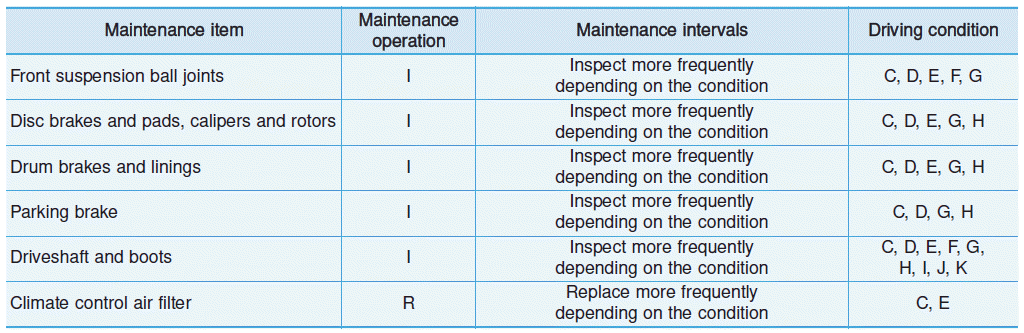

Refer to the chart below for the appropriate maintenance intervals.

I : Inspect and if necessary, adjust, correct, clean or replace
R : Replace or change

Severe driving conditions

A : Repeated short distance driving
B : Extensive idling
C : Driving in dusty, rough roads
D : Driving in areas using salt or other corrosive materials or in very cold weather
E : Driving in the condition of inflowing sand or dust into engine
F : Driving in heavy traffic area
G : Driving in mountainous areas
H : Towing a trailer
I : Driving for patrol car, taxi, commercial car or vehicle towing
J : Driving over 170 km/h (106 mile/h)
K : Frequently driving in stop-and-go condition
