| Description |
| • |
Output speed sensor uses an electric current type hall sensor in which
the current is changed by the magnetic variation.
|
| • |
Output speed sensor (A) and Input speed sensor are integrated and installed
in the transaxle.
|
| • |
Measures the rate of rotation of the output shaft inside the transaxle
and delivers the readings to the TCM.
|
| • |
The sensor provides critical input data that's used in feedback control,
torque converter clutch control, gear setting control, line pressure
control, clutch activation pressure control, and sensor fault analysis.
|
| Specifications |
|
Operation condition [°C(°F)] |
(-40 ~ 150) -40 ~ 302 |
|
|
Output voltage (V) |
High |
1.18 ~ 1.68 |
|
Low |
0.59 ~ 0.84 |
|

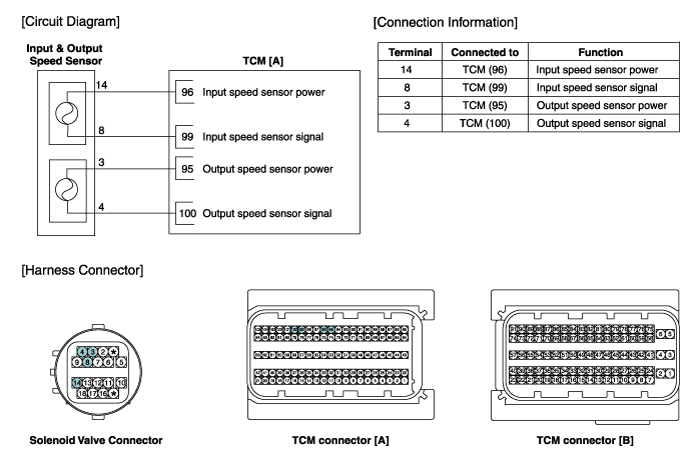

| Circuit Diagram |

| Inspection |
| 1. |
Using the GDS, check the input / output speed sensor waveforms.

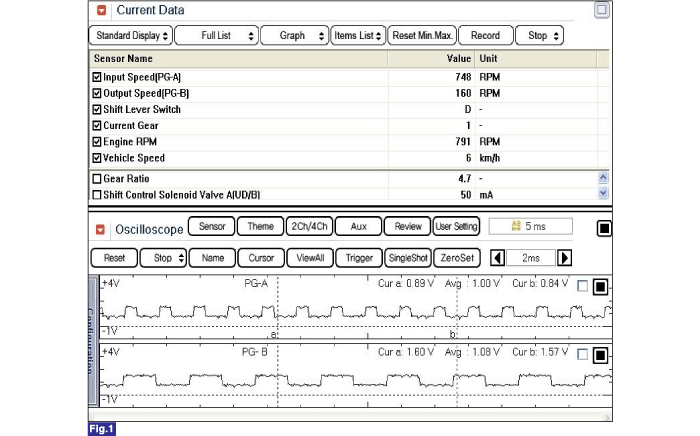

Fig 1) Input / Output speed sensor at low speed

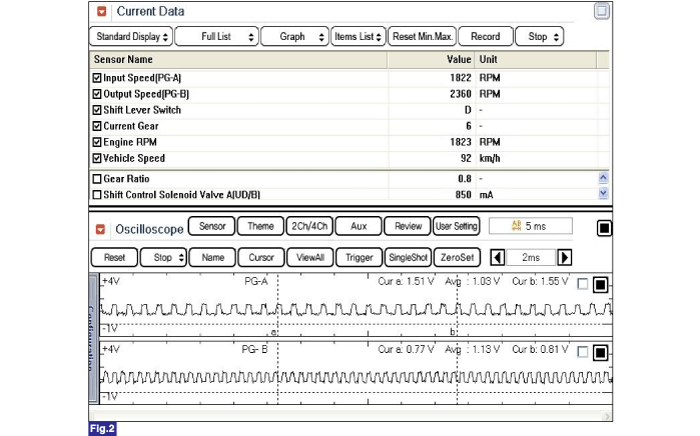

Fig 2) Input / Output speed sensor at high speed
|
| Removal |
| 1. |
Remove the valve body assembly.
(Refer to Valve body System - "Valve Body")
|
| 2. |
Disconnect the input & output speed sensor connector (A) from the main
wiring.
|
| 3. |
Remove the input & output speed sensor (B) after removing the bolts
(2ea).
|
| Installation |
| 1. |
To install, reverse the removal procedure.
|
| 2. |
Check fluid level after filling the automatic transaxle with fluid.
(Refer to Hydraulic System - "Fluid")
|
