Hyundai Creta: Power Door Mirrors / Power Door Mirror Actuator
Hyundai Creta GS 2014-2019 Service Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Actuator
Components and components location
| Components |
Repair procedures
| Inspection |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Disconnect the connector (B) after removing the front door quadrant
cover (A).
|
| 3. |
Disconnect the power door mirror connector (A) from the harness.
|
| 4. |

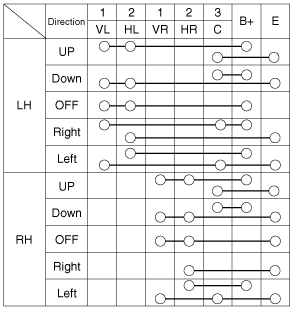

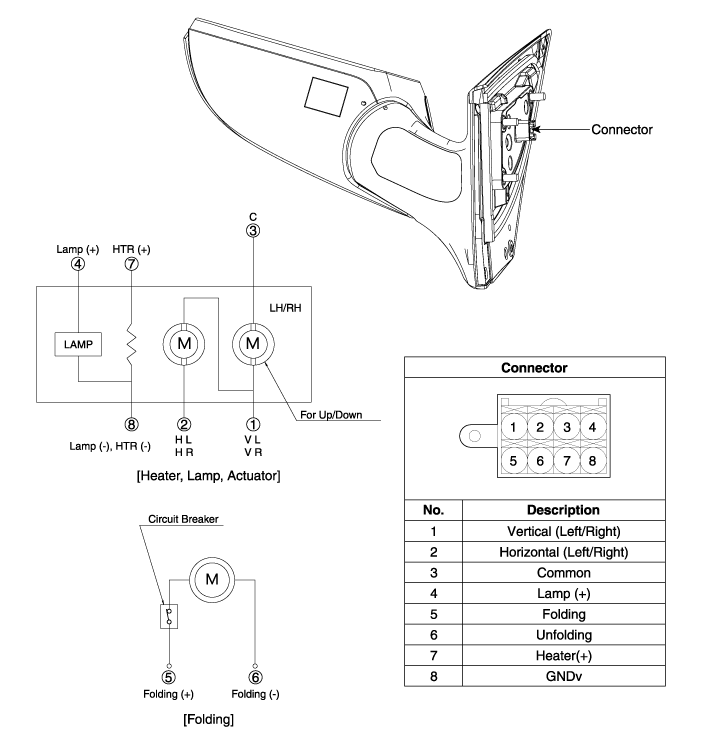

Apply battery voltage to each terminal as shown in the table and verify
that the mirror operates properly.
[Turn Signal Lamp]
[Folding Mirror]
|
Power Door Mirror Switch
Schematic diagrams
Circuit Diagram
Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove ...
