Hyundai Creta: Rear Door / Rear Door Latch

Hyundai Creta GS 2014-2020 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Latch

Components and components location

Component Location

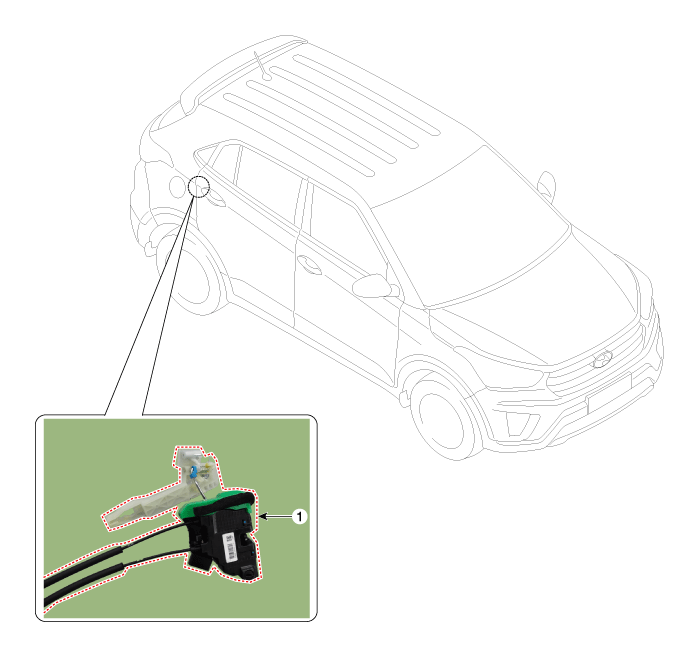

1. Rear door latch

Repair procedures

Replacement

1.	Remove the rear door trim. (Refer to Rear Door - "Rear Door Trim")

2.	Remove the rear door window glass. (Refer to Rear Door - "Rear Door Window Glass")

3.	Remove the rear door outside handle. (Refer to Rear Door - "Rear Door Outside Handle")

Loosen the front door latch (A) mounting screws.

Tightening torque :

7.8 ~ 10.8N.m (0.8 ~ 1.1kgf.m, 5.8 ~ 8.0 lb-ft)

5.	Disconnect the rear door latch connector (A).

To install, reverse the removal procedure.

•	Make sure the connector is connected properly.

•	Make sure the door locks/unlocks and opens/closes properly.

•	Replace any damaged clips.
