Hyundai Creta: Rear Door / Rear Door Outside Handle

Hyundai Creta GS 2014-2019 Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Outside Handle

Components and components location

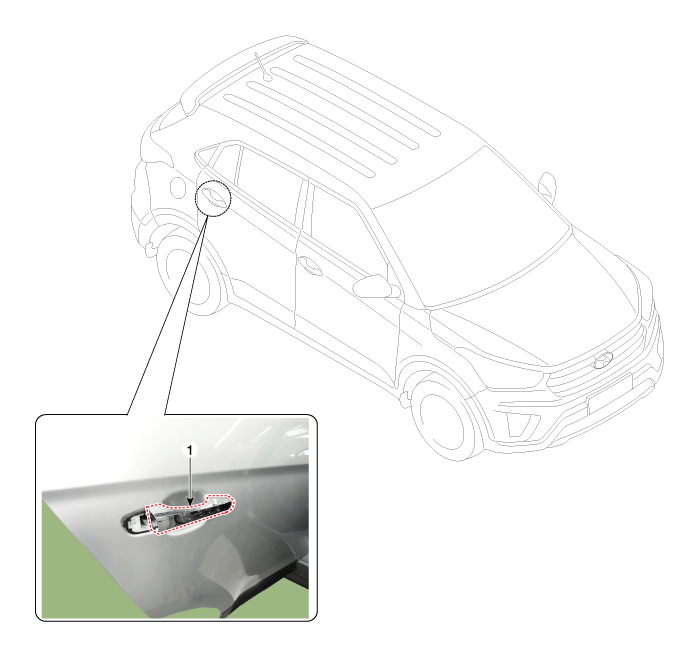

Component Location

1. Rear door outside handle

Repair procedures

Replacement

1.	Remove the hole plug.

After loosening the mounting bolt, then remove the rear door outside handle cover (A).

Tightening torque :

7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

3.	Remove the rear door outside handle (A) by sliding it rearward.

To install, reverse the removal procedure.

•	Be sure to install the outside handle pad (A) onto between the outside handle and the door panel.

•	Make sure the door locks/unlocks and opens/closes properly.
