Hyundai Creta: Rear Seat Belt / Rear Seat Belt Buckle

Hyundai Creta GS 2014-2021 Service Manual / Body (Interior and Exterior) / Rear Seat Belt / Rear Seat Belt Buckle

Components and components location

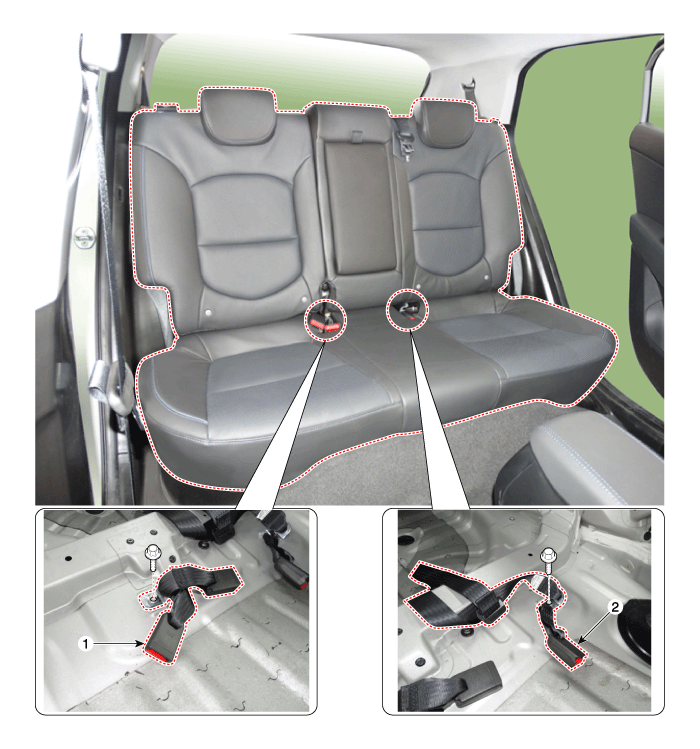

Component Location

1. Rear row seat belt buckle [RH]

2. Rear seat belt buckle [LH]

Repair procedures

Replacement

1.	Remove the rear seat cushion assembly. (Refer to Reat Seat - "Rear Seat Assembly")

Loosen the mounting bolt, and then remove the rear seat belt buckle (A).

[India - General : Lap belt]

Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

[General : Lap and diagonal belt]

Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

3.	To install, reverse the removal procedure.
